Combined ISTT & ESTT Remediation of Mercury-Contaminated Soil

Large-scale remediation of mercury-contaminated soil in Ivry-sur-Seine, France, combining In-Situ and Ex-Situ Thermal Treatment. The hybrid remediation strategy enabled the safe treatment of a complex urban site beneath and around existing structures while recovering elemental mercury and preparing the area for future public use.

Site description

Treated volume2,500 m³of contaminated soil (4,500 t)
Thermal technologyCombined In-Situ and Ex-Situ Thermal Treatment
Main contaminantMercury (Hg) and mercuric chloride (HgCl₂)
Site challengesUrban site with an existing building and neighbouring structures; pure mercury present
Project timeline2017
Project site

Solution

  • Treatment methodIn-situ treatment zones combined with an ex-situ thermal pile
  • Treatment program322 heating tubes, vertical, inclined and 15 m horizontal; target temperature 350°C; 180 days of heating
  • Contaminated vapour managementDedicated vapour treatment unit combining condensation and activated carbon adsorption
  • Process controlSoil temperature and pressure, structure temperatures, daily mercury analyser, gas sampling and water control

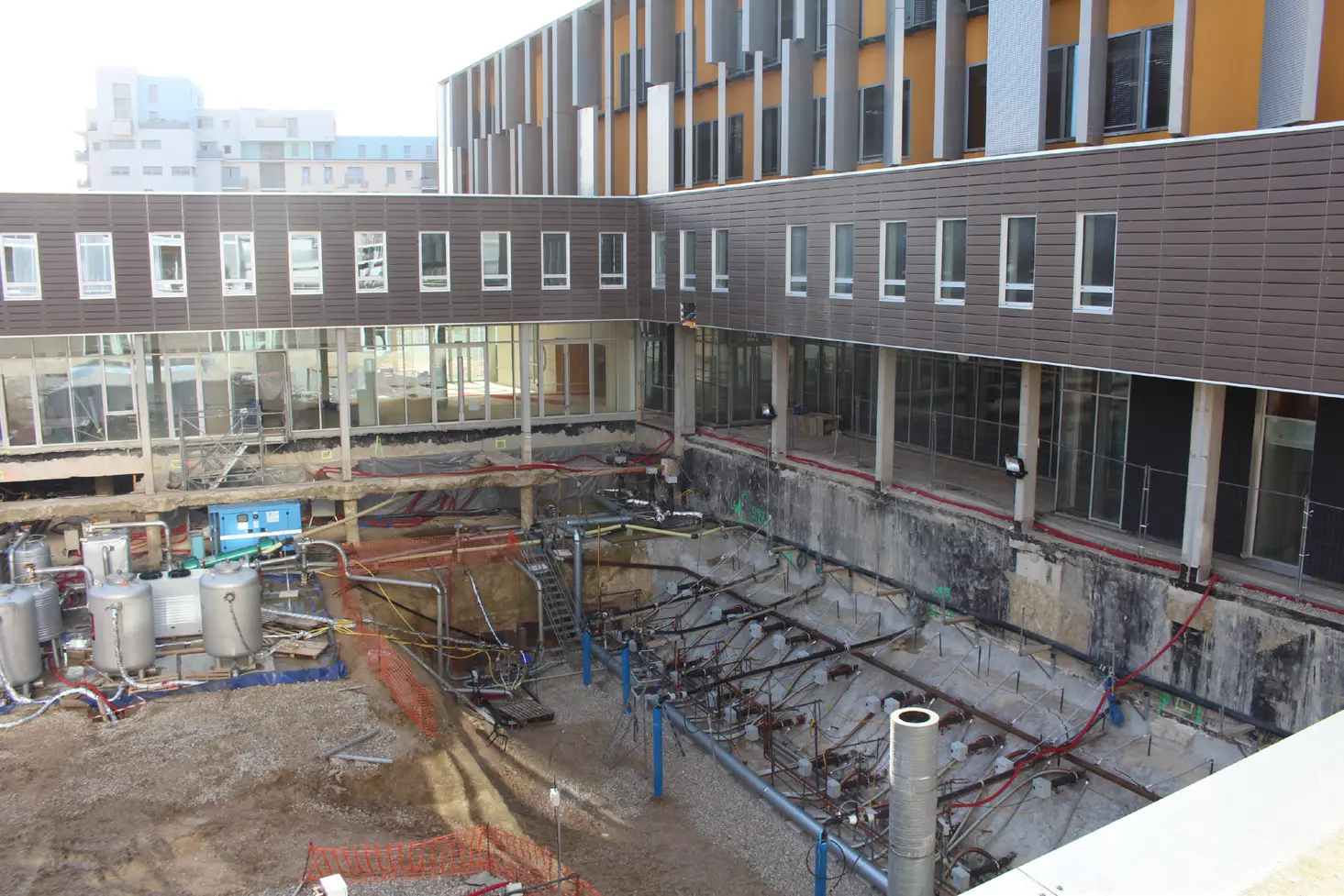

Treatment on site

Results

4,500 tof mercury-contaminated soil treated
≈ 150 kgof mercury recovered
Remediation objectives achieved across the majority of the treated soils

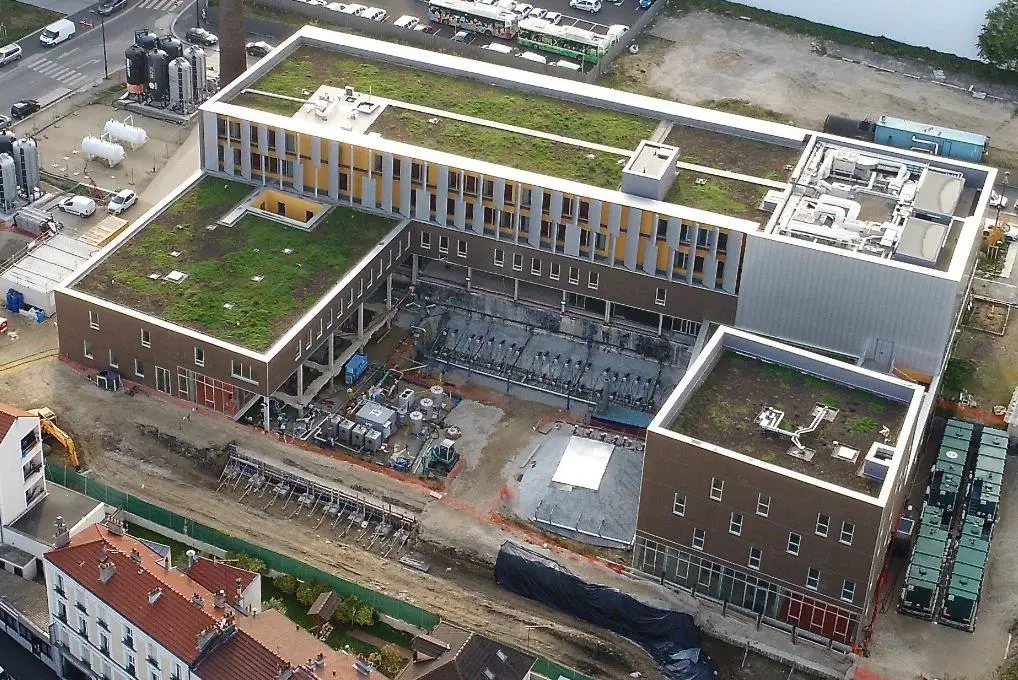

Site during or after treatment

Reference sheet

Technical summary of this project, sent on request.
