Ex-Situ Thermal Treatment of Heavily Hydrocarbon-Contaminated Soil

Pilot-scale ex-situ thermal remediation project carried out in Xinxin, Gansu Province, China. Contaminated soils originating from several industrial sites in the region were treated inside a hangar using an ESTD system designed for highly impacted hydrocarbon-contaminated soils.

Site description

Treated volume217 m³of contaminated soil (340 t)
Thermal technologyEx-Situ Thermal Treatment (pilot)
Main contaminantTPH (up to 150,000 mg/kg DM)
Site challengesPile built inside a hangar with limited access; soils from several sites with different properties
Project timeline2017

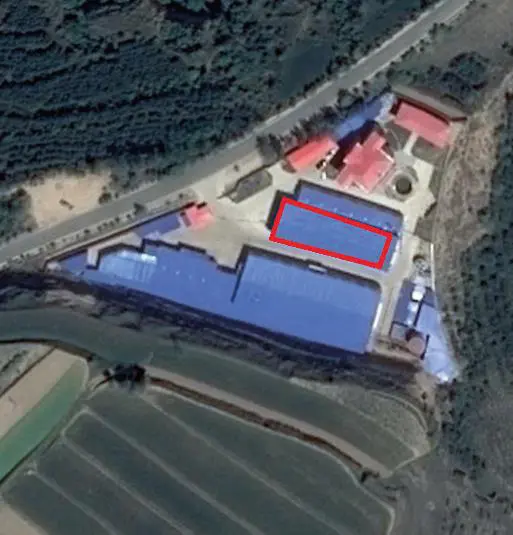

Project site

Solution

  • Treatment methodEx-situ thermal pile inside an industrial hangar
  • Treatment program9 diesel burners, 3 exchanger tubes and 12 vapour tubes over about 250 m²; treatment from 27 July to 27 October 2017
  • Contaminated vapour managementContaminants recovered in two knock-out units of the vapour treatment unit
  • Process control8 hot samples at two depths in four zones, analysed by infrared

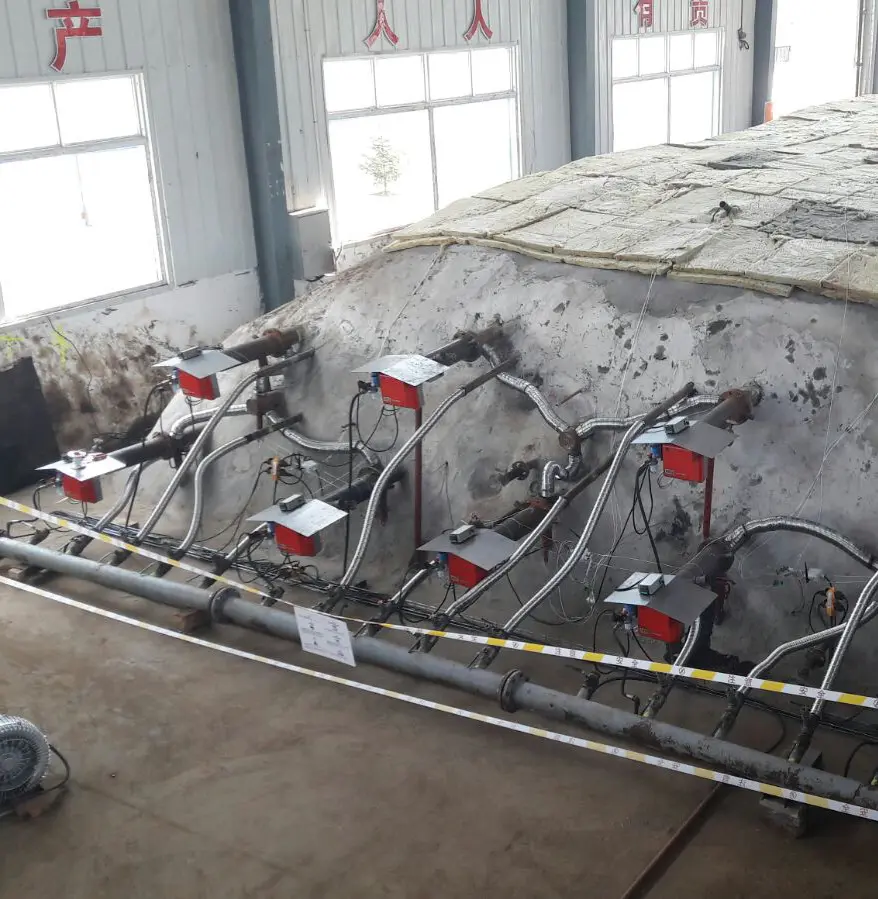

Treatment on site

Results

> 70%of the contaminants extracted

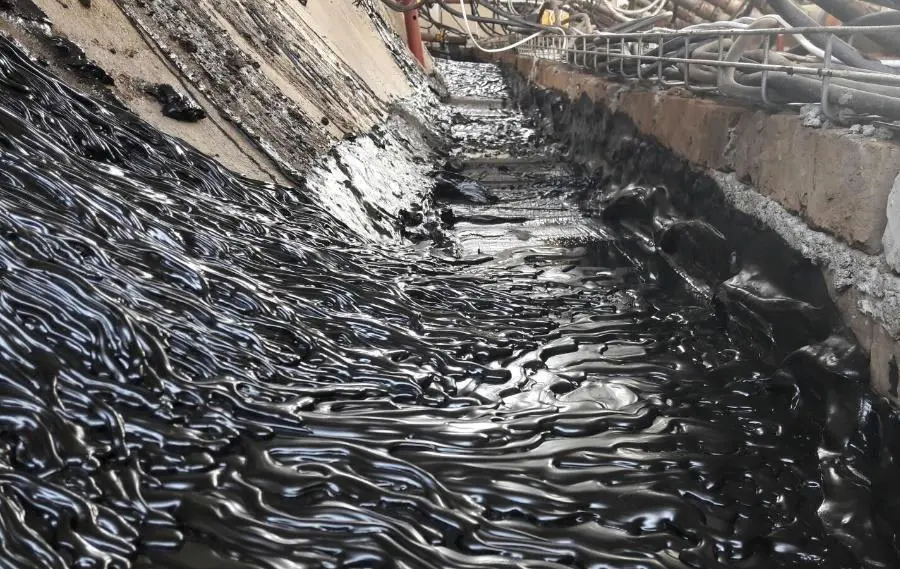

30.4 m³of liquids recovered
Concentrations below two of the three target levels (20,000 and 10,000 mg/kg); 3,000 mg/kg not reached
Site during or after treatment

Reference sheet

Technical summary of this project, sent on request.
