Site description
Treated volume247 m³of contaminated soil (445 t)
Thermal technologyIn-Situ Thermal Treatment
Main contaminantDiesel (C10–C40)
Site challengesContamination at the edge of and under an existing building
Project timeline2016

Solution

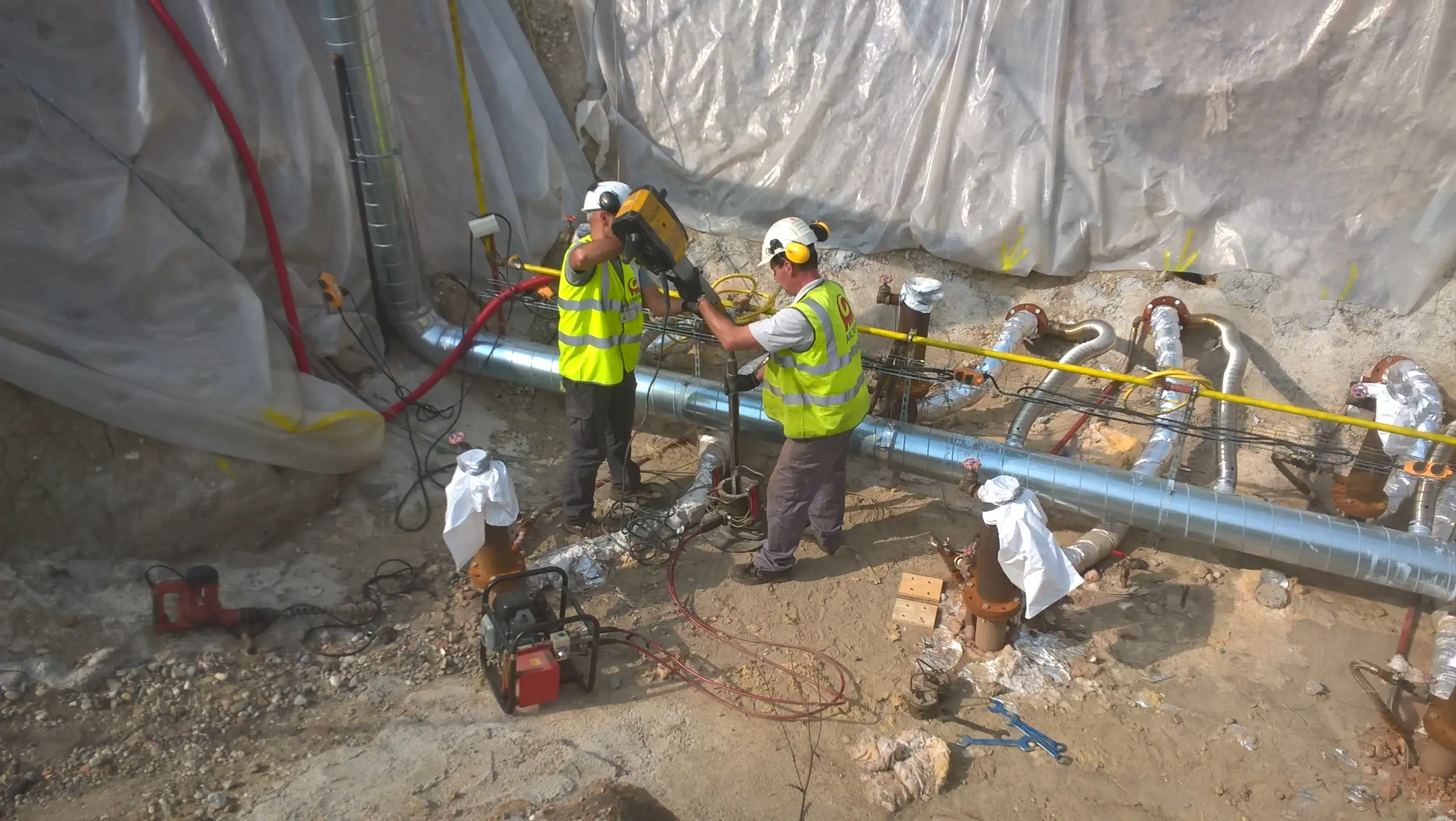

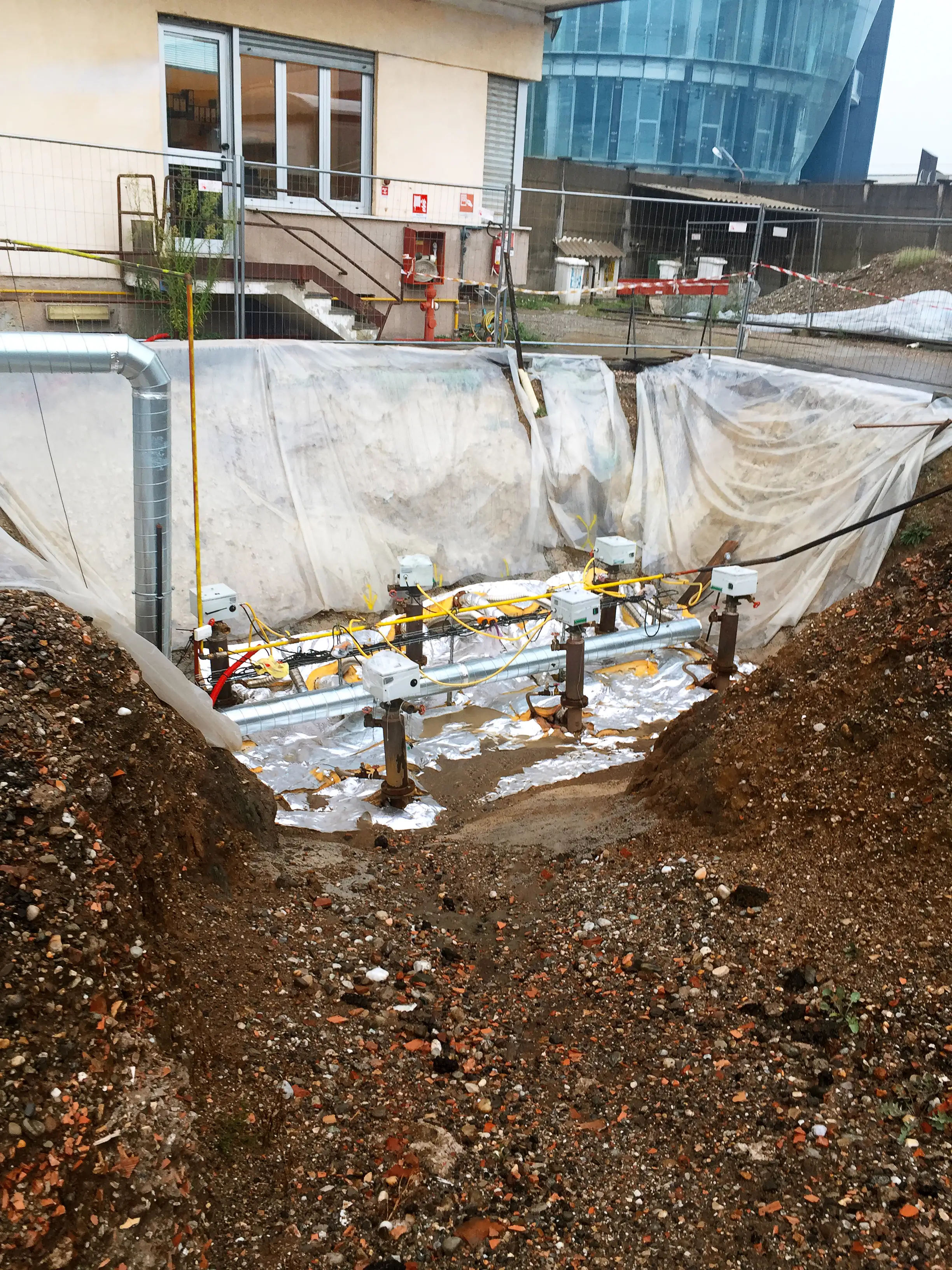

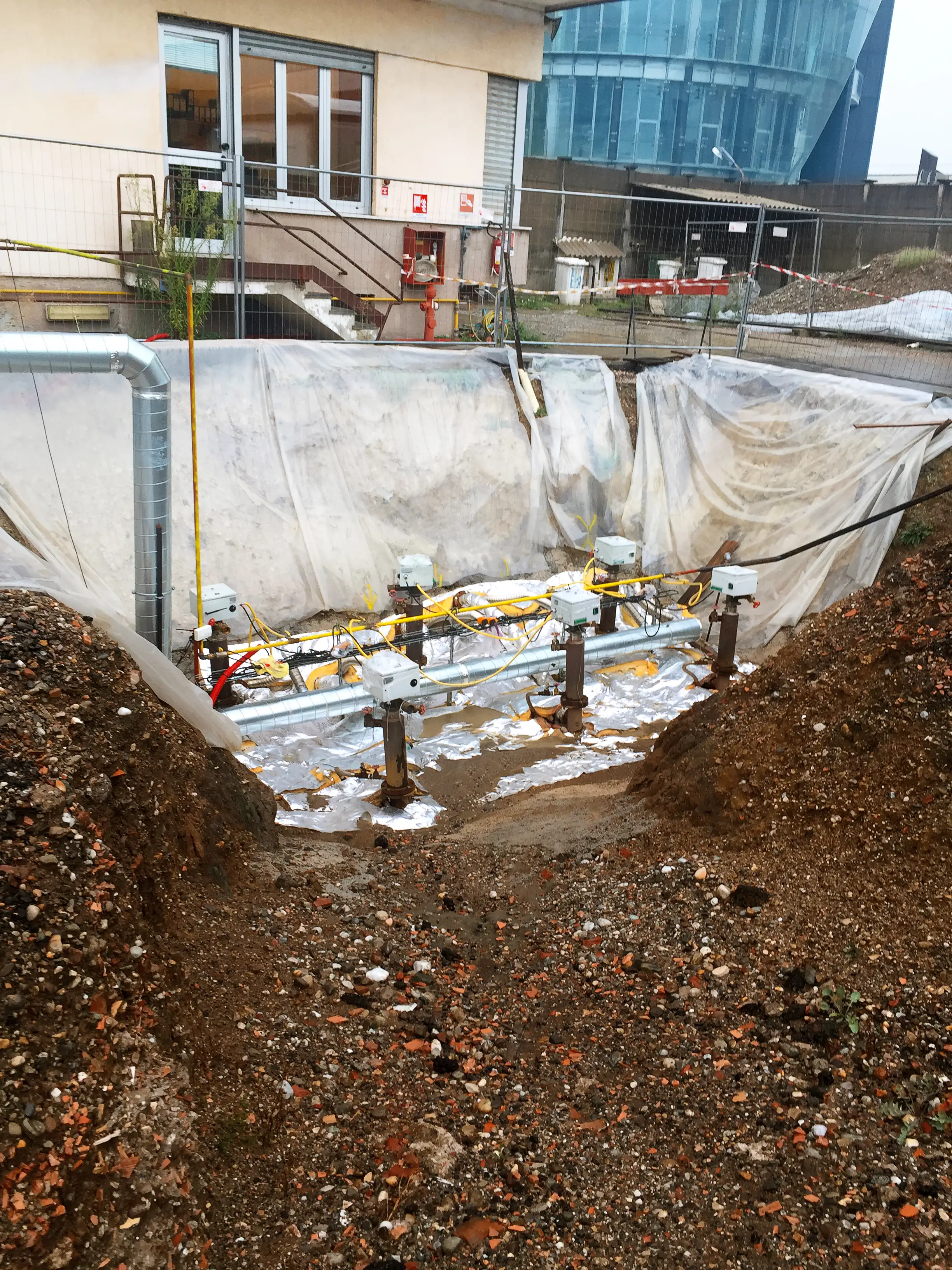

- Treatment methodIn-situ thermal treatment from a 9.7 × 6.6 m pit, 3 m deep

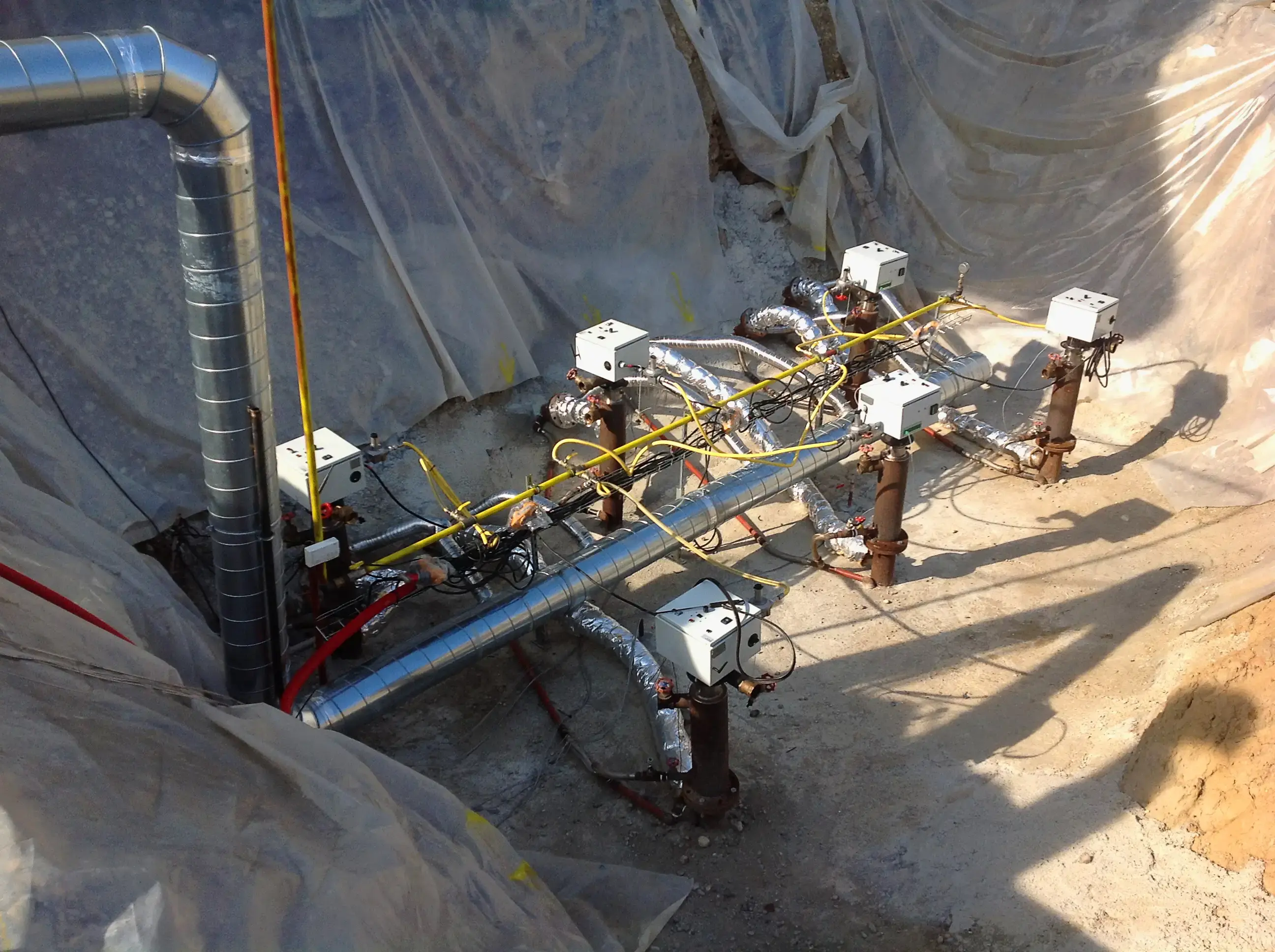

- Treatment program6 Smart Burners and 12 steam tubes, target temperature 220°C, 43 days of heating
- Contaminated vapour managementRe-Burn: burners fuelled by the collected gases
- Process controlPost-treatment sampling: 5 points in the pit, 3 inside the building

Results
43 daysheating time (July to September 2016)
Treatment target (<100 mg/kg TPH) reached down to 7 m outside the building
Capillary fringe (7–7.5 m) to be finished with ISCO

Reference sheet
Technical summary of this project, sent on request.
