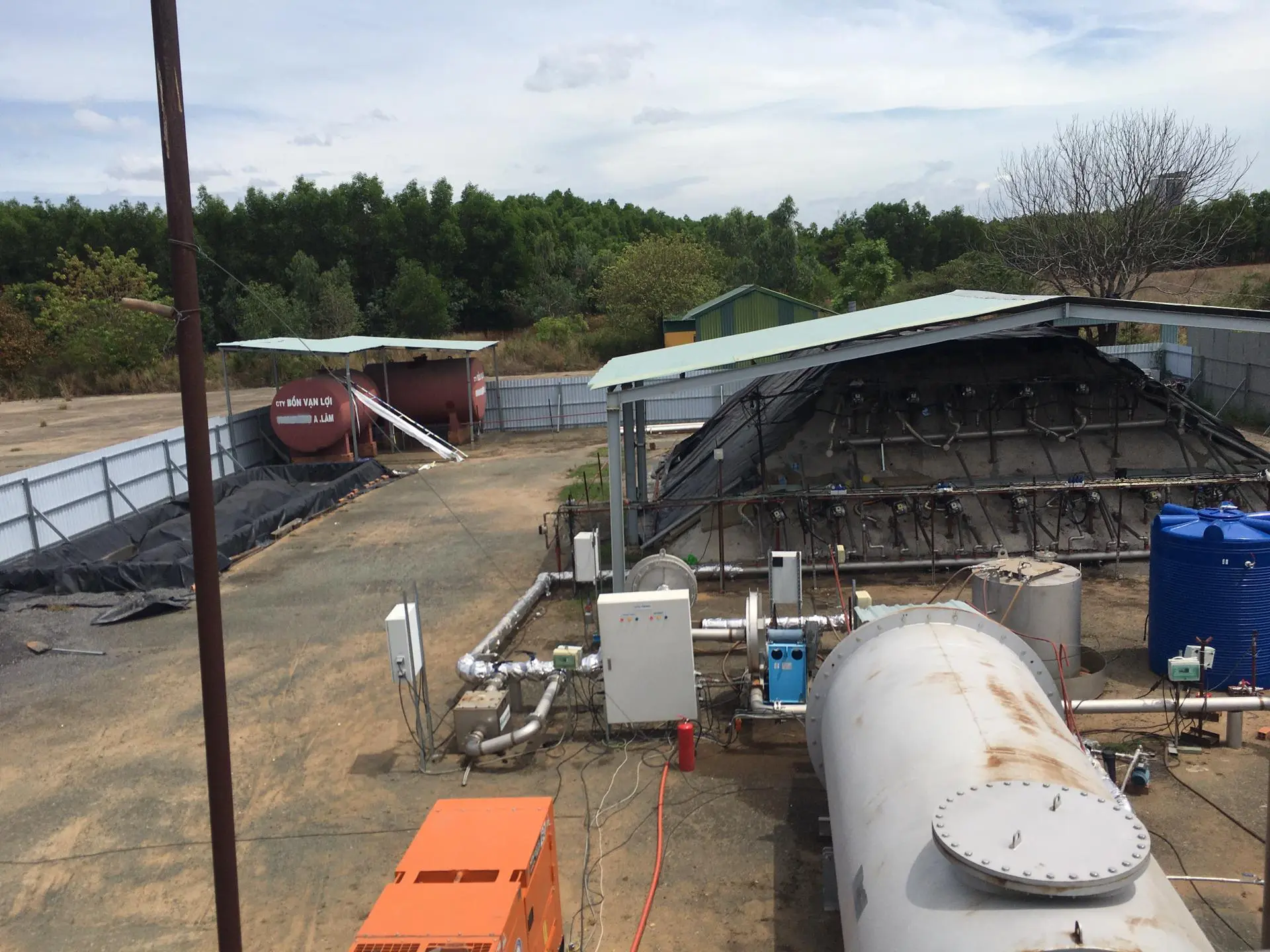

Site description
Treated volume237 m³of contaminated soil
Thermal technologyEx-Situ Treatment (Applied Onsite)
Main contaminantDioxin
Site challengesVery high dioxin levels (up to 17,200 ppt WHO-TEQ) in soil, sludge and washing cake
Project timeline2020–2022

Solution

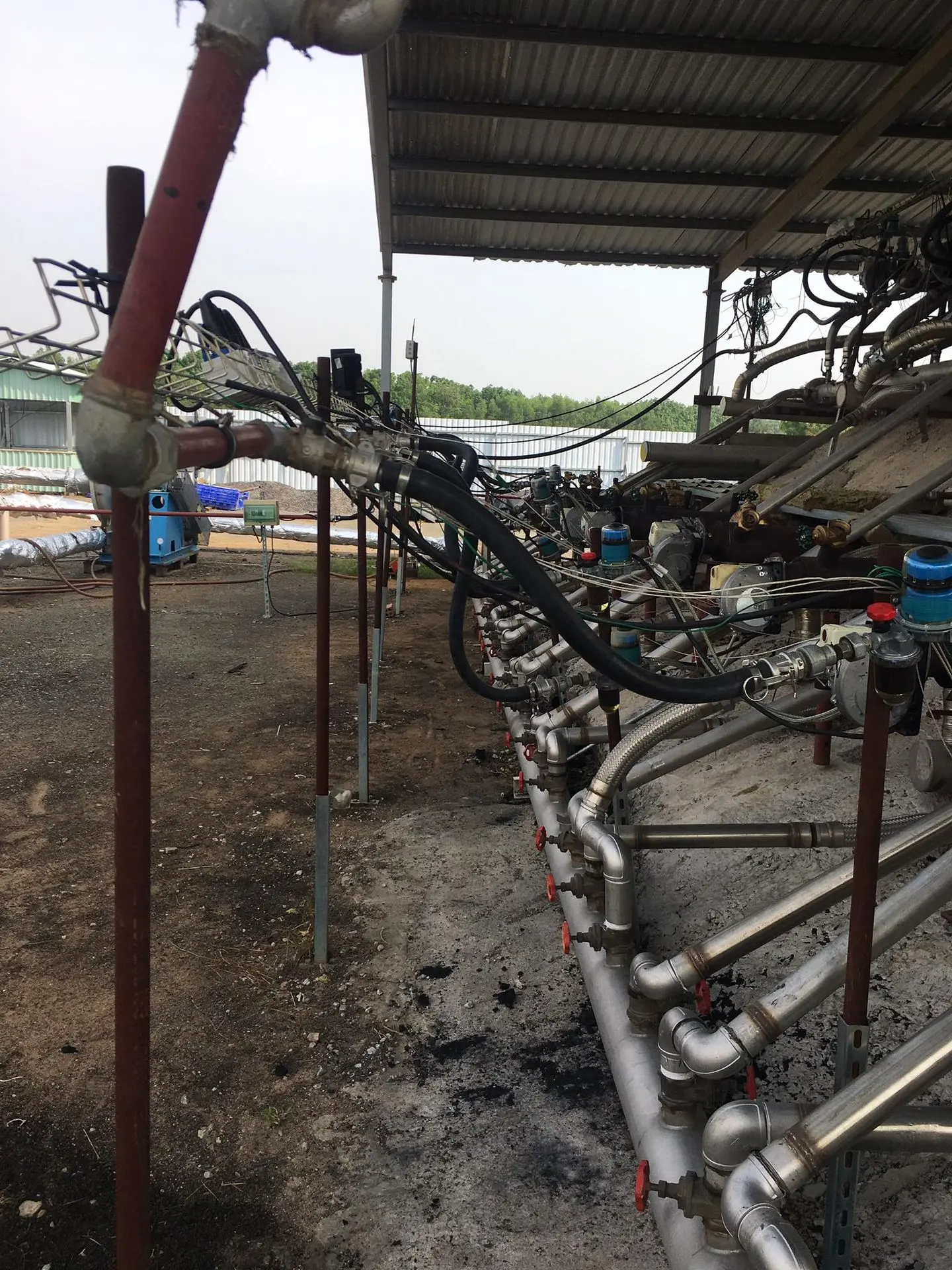

- Treatment methodEx-situ thermal pile heated with diesel Smart Burners™
- Treatment program1 batch of 237 m³ (187 m³ soil, 25 m³ sludge, 25 m³ washing cake) with 15 heating tubes
- Contaminated vapour managementOff-gases extracted under negative pressure and treated in a Thermal Oxidizer (>1,100°C)
- Process controlPile temperature, negative pressure (< 0 mbar) and ambient air monitoring

Results
99%dioxin destruction efficiency
40 daystreatment time
Fully compliant air emissions

Reference sheet
Technical summary of this project, sent on request.
