How thermal treatment works

From contaminated soil to clean land

Inside view of a burner tube
Principle

From contaminated soil to clean land

Thermal remediation uses heat to remove contaminants from soil. By carefully controlling temperature and airflow, contaminants are transformed into vapours, captured, and safely treated before clean soil is returned to the site.

  • Understand the overall thermal remediation process
  • See how the heat transfers into the soil
  • Discover the role of vapour extraction and treatment

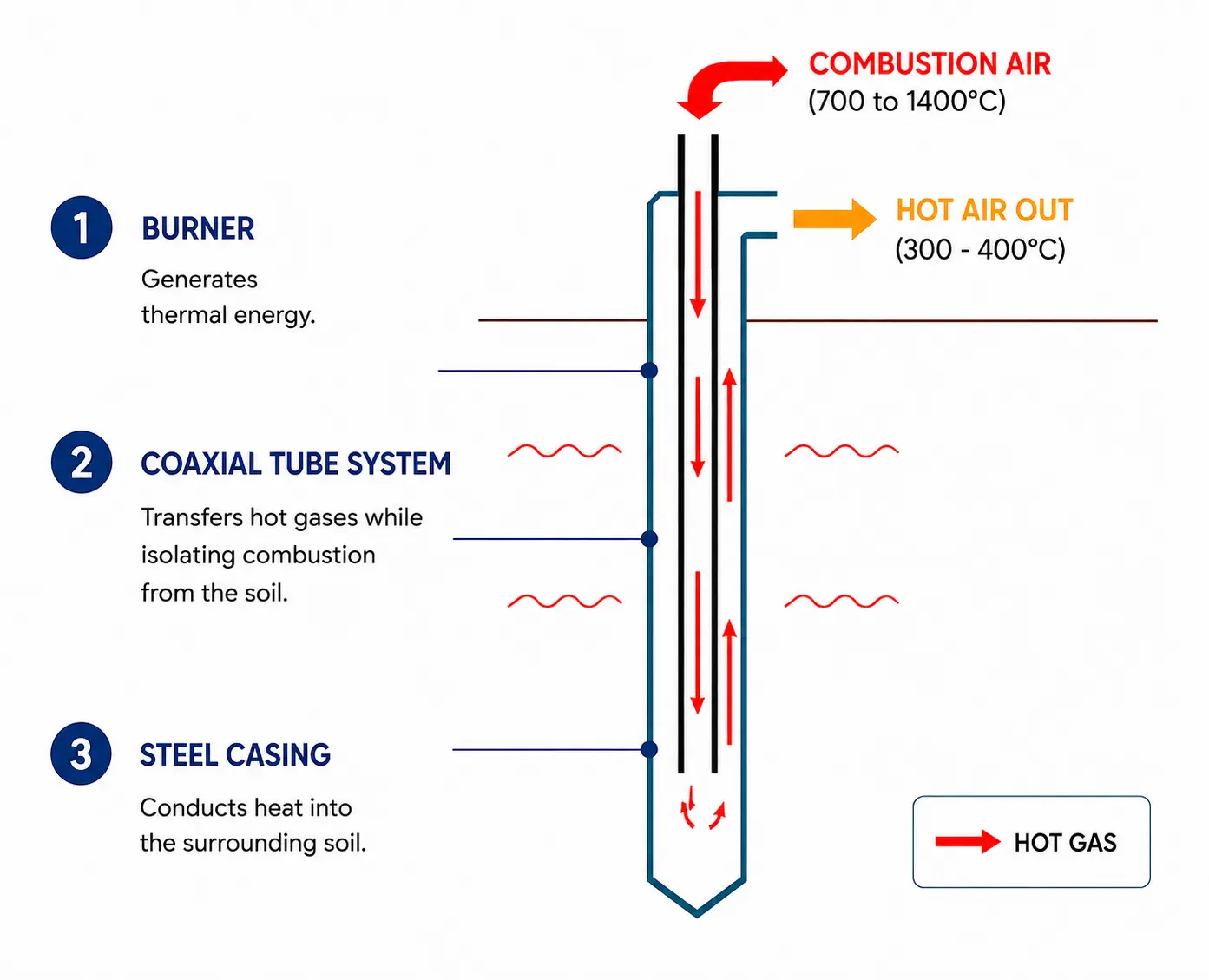

Conductive Thermal Heating - Step by Step

Bringing Heat Directly into the Ground

  • Coaxial tube technology
  • Optimized heater spacing
  • Uniform conductive heating
  • Engineered for predictable remediation
Thermal desorption heating phaseThermal desorption heating phaseThermal desorption heating phaseThermal desorption heating phase
Final soil cooling and reuse preparationFinal soil cooling and reuse preparationFinal soil cooling and reuse preparationFinal soil cooling and reuse preparation

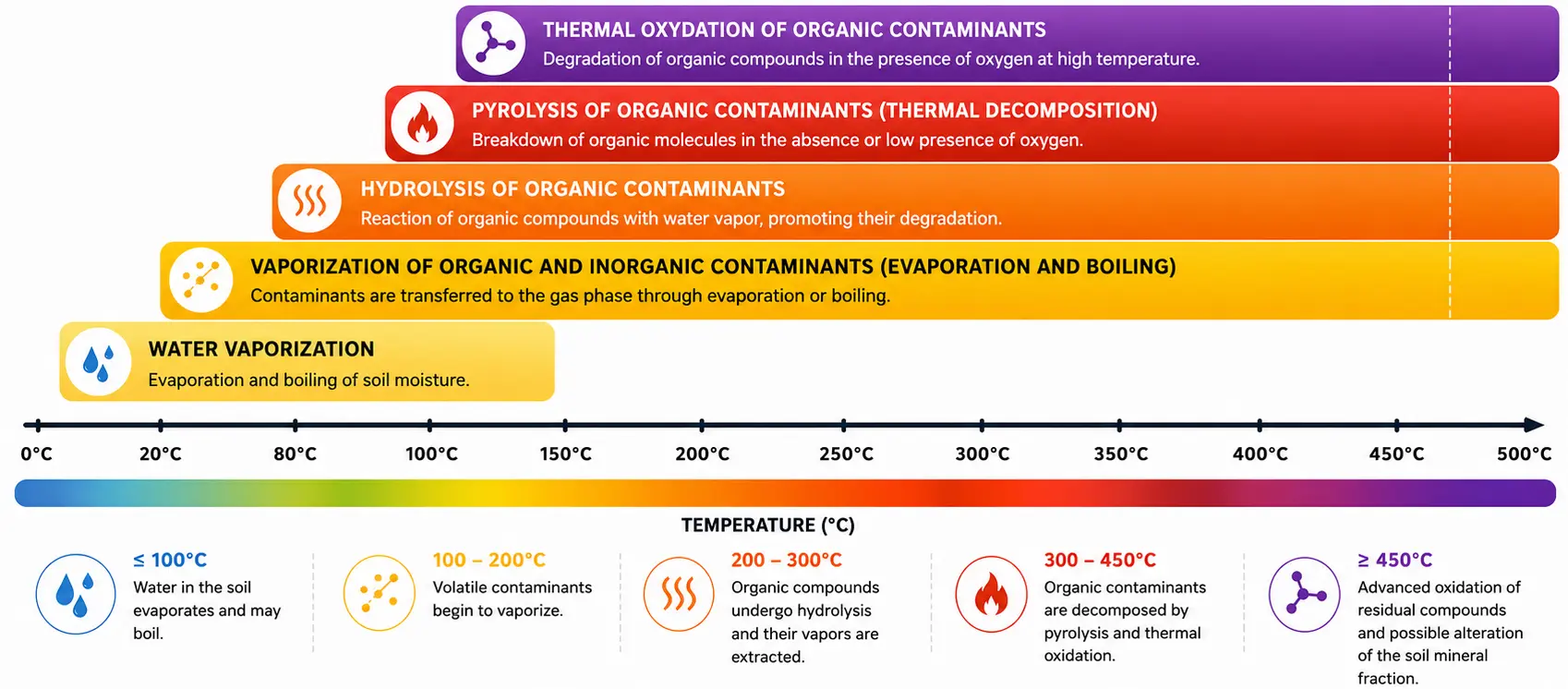

Mechanisms

Temperature Activates Different Remediation Mechanisms

As soil temperature increases, different physical and chemical mechanisms occur, progressively removing or destroying contaminants.

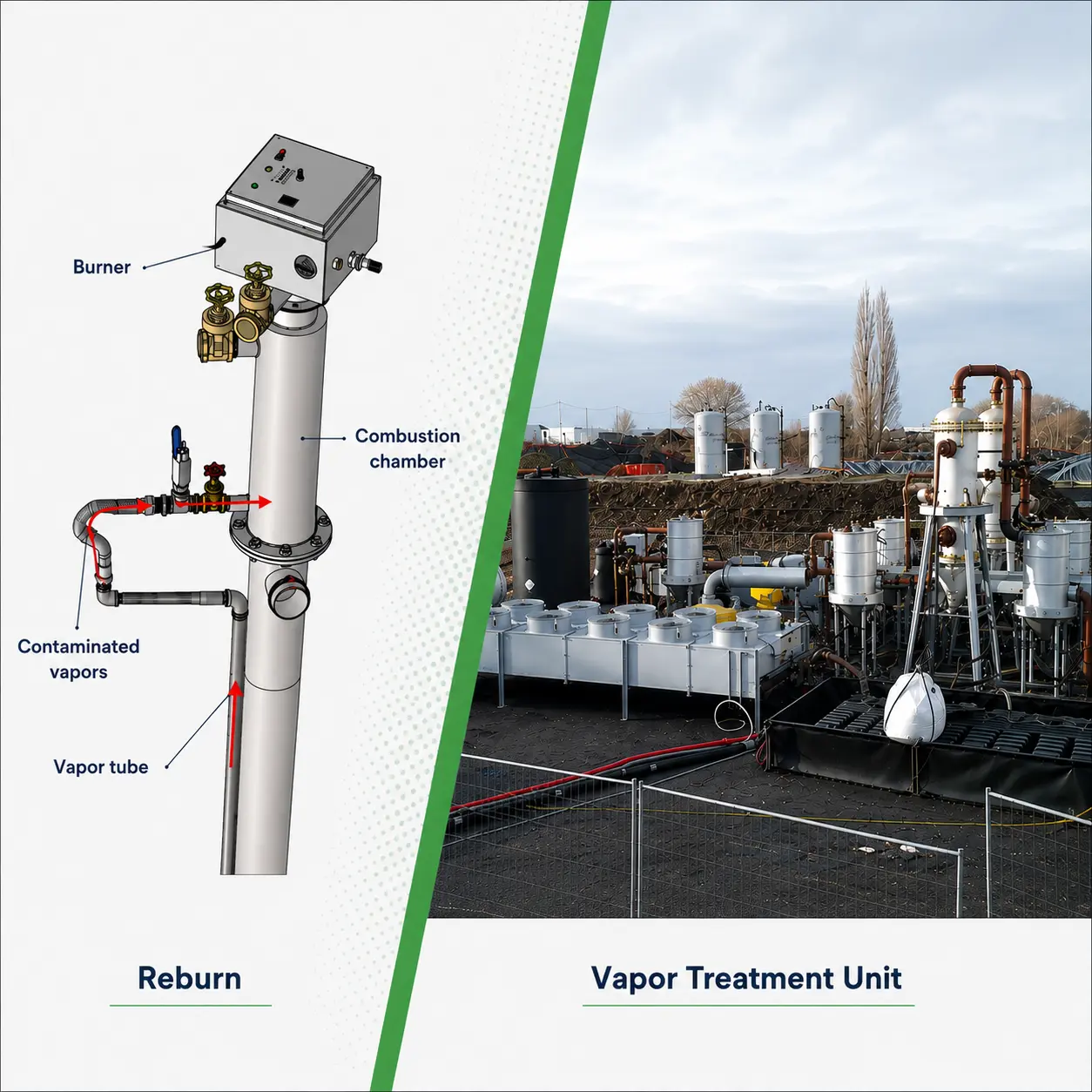

Vapour treatment

Vapours are captured and treated

As contaminants become volatile, they are continuously extracted under negative pressure through dedicated vapour recovery wells.

The extracted vapours are then routed to an engineered treatment train selected according to the contaminant type and regulatory requirements before clean air is released:

  • Re-Burn: contaminated vapours are reinjected directly into the burner flame and thermally oxidized.
  • Vapour Treatment Unit: contaminated vapours are condensed and concentrated on granular activated carbon.
Vapour collection and treatment systemVapour collection and treatment systemVapour collection and treatment systemVapour collection and treatment system
