Site description
Treated volume1,022 m³of contaminated soil
Thermal technologyIn-Situ Thermal Treatment
Main contaminantMineral oil (C10–C40), BTEX

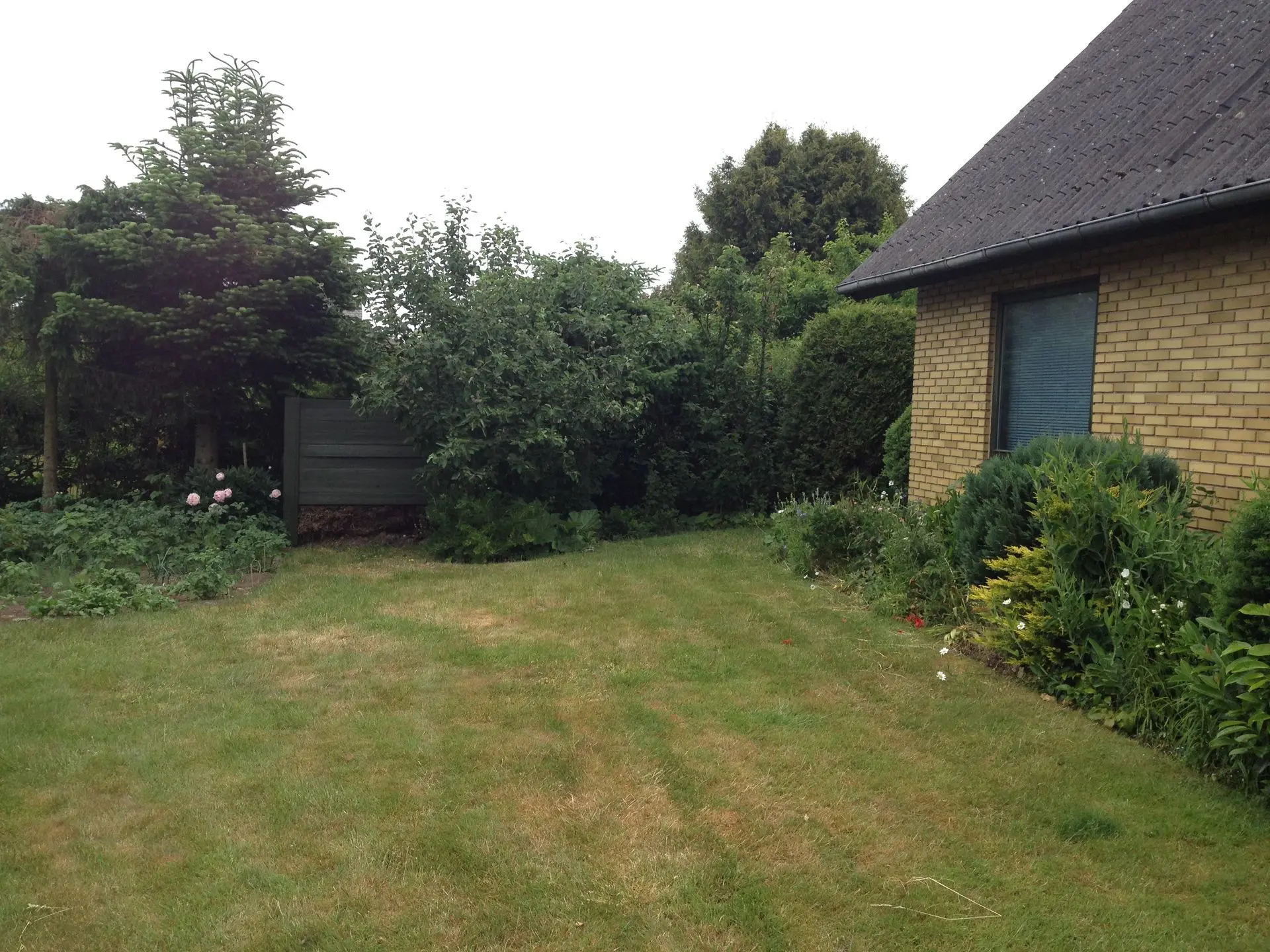

Site challengesPrivate house: contamination under the house and garden down to 13 m; groundwater close to the heating tubes
Project timeline2017

Solution

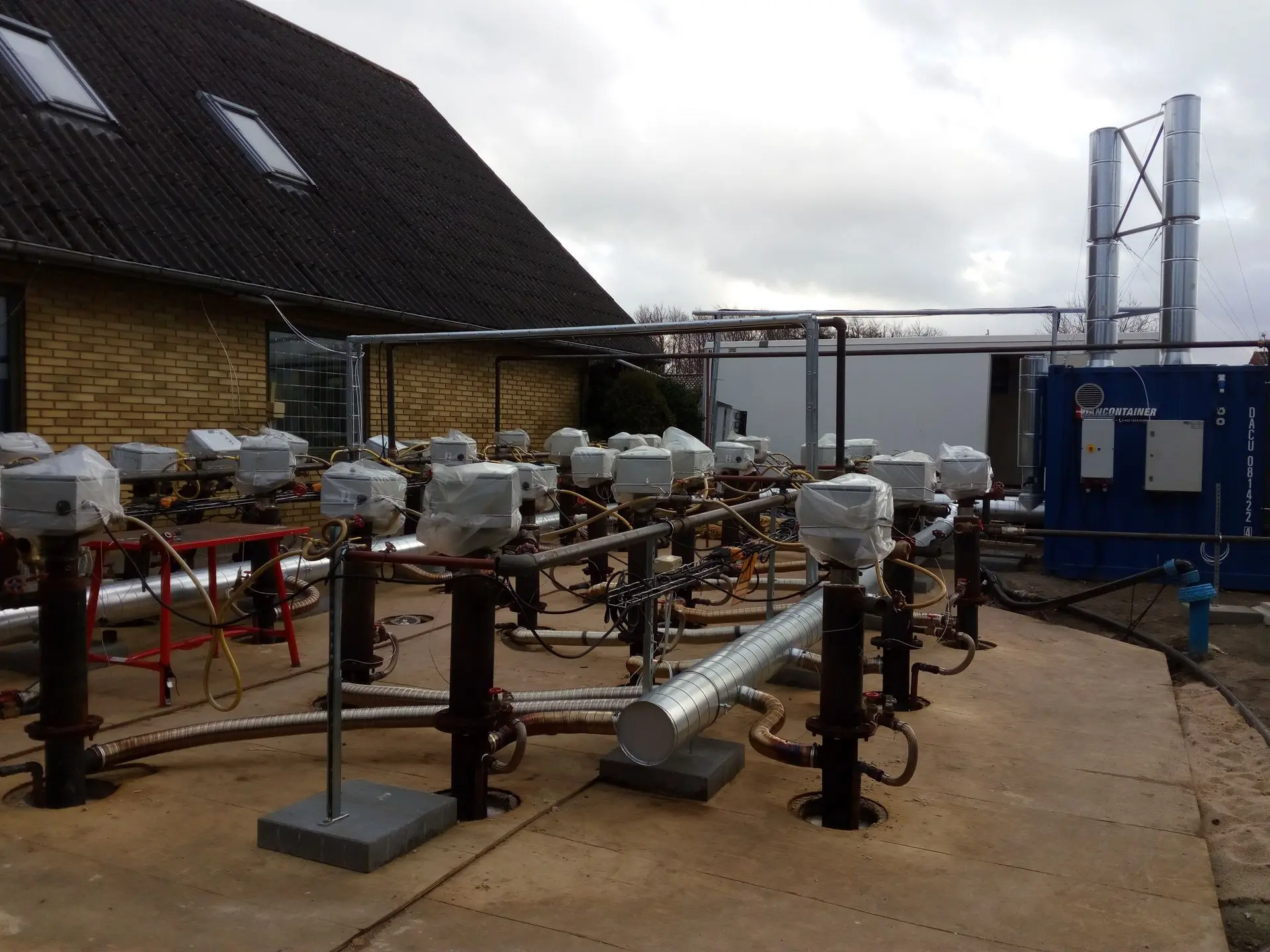

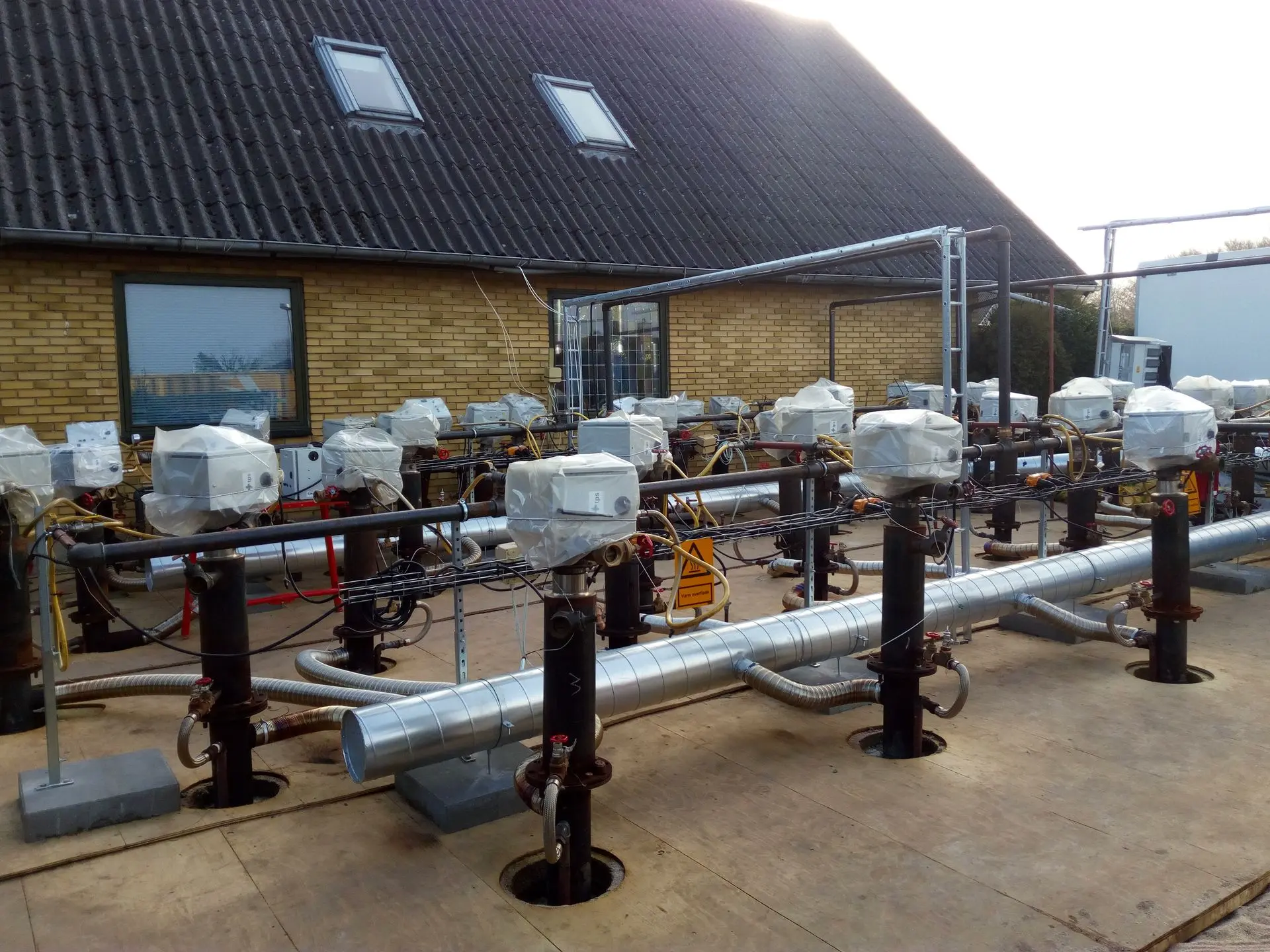

- Treatment methodIn-situ thermal treatment with Re-Burn
- Treatment program37 heating tubes (13 m long), target temperature 220°C, 57 days of heating
- Contaminated vapour managementRe-Burn: vapours reinjected into the burners, no condensate
- Process controlTemperature monitoring in the 37 heating tubes and 15 thermocouples

Results
Contaminant mass reduced from about 5,000 kg to 8 kg
57 daysheating time
Average soil temperature of 255°C at the end of heating; target <100 mg/kg DM

Reference sheet
Technical summary of this project, sent on request.
