Large-Scale In-Situ Thermal Desorption of Refinery Hydrocarbon Contamination at Gela Refinery, Italy

Up to 80,000 m³ of soils contaminated with hydrocarbons and mercury were treated through a multi-batch In-Situ Thermal Desorption program, demonstrating the effectiveness of ISTD for large-scale refinery remediation while achieving the cleanup objectives required by Italian regulations.

Site description

Treated volume80,000 m³of contaminated soil
Thermal technologyIn-Situ Thermal Treatment
Main contaminantHydrocarbons, PAH, chlorinated VOCs (PCE, TCE, TCA), mercury
Site challengesFormer refinery landfill; treatment depth 4.5–5 m in zone A and 12 m in zone B
Project timeline2017–2022
Project site

Solution

  • Treatment methodIn-situ thermal treatment in successive batches
  • Treatment program24 batches (12 per zone), about 200 heating tubes per batch, target temperature 250°C
  • Contaminated vapour managementRe-Burn
  • Process controlContinuous soil temperature monitoring, internal and final sampling

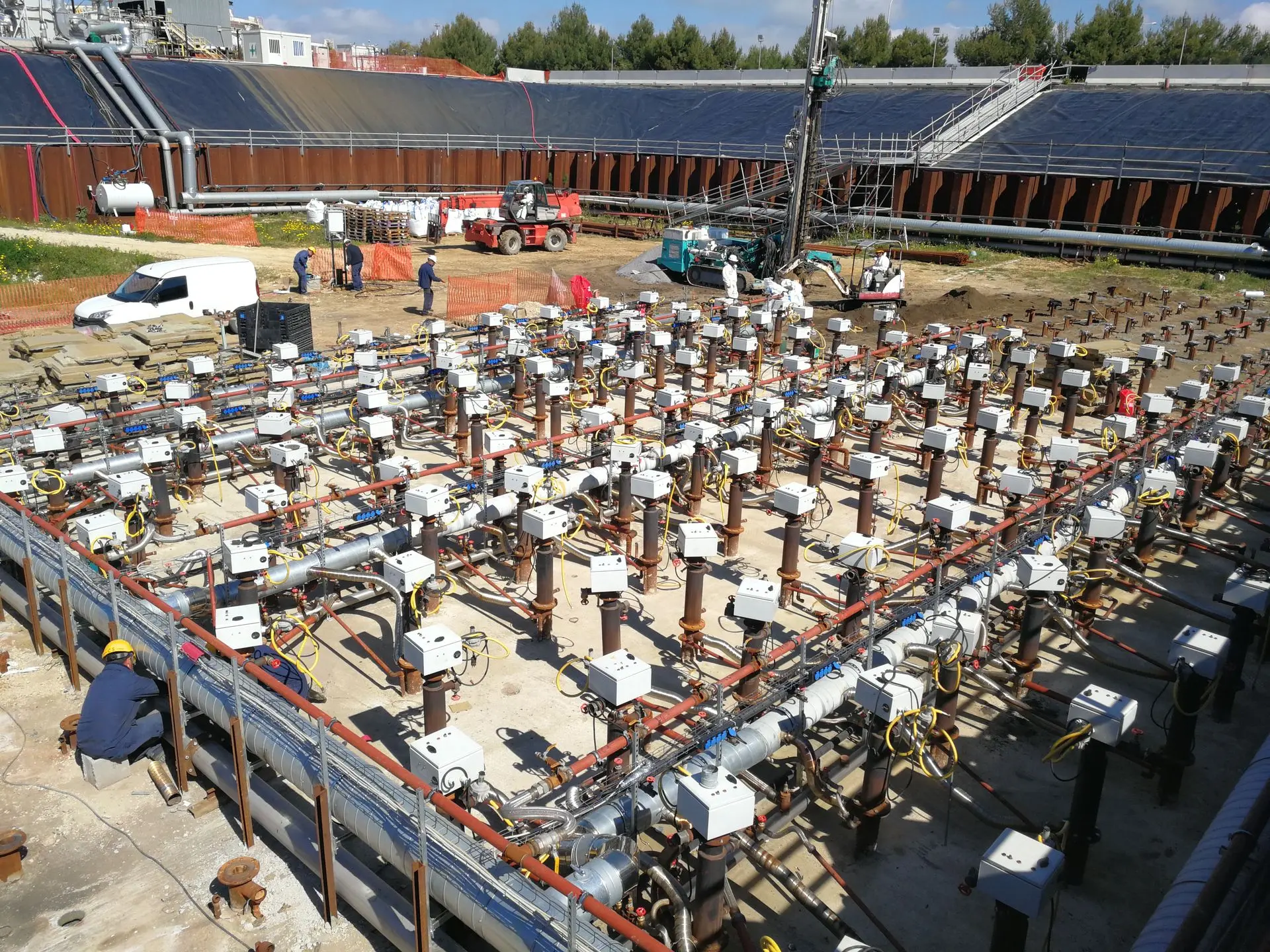

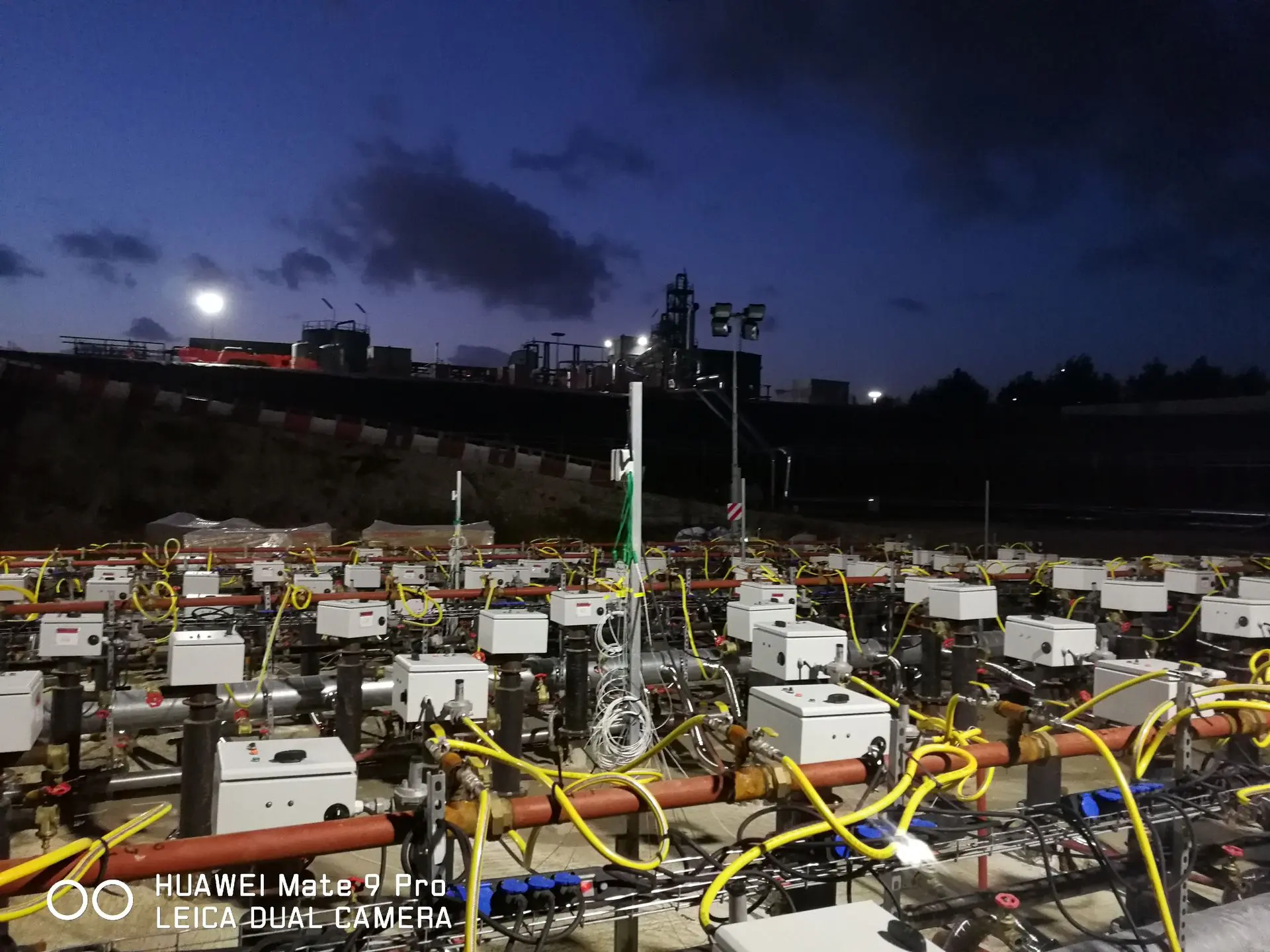

Treatment on site

Results

80,000 m³treated soil volume
End of treatment confirmed by the regional environmental agency (ARPA)
Residual concentrations mostly below the detection limit (target <750 mg/kg DM)

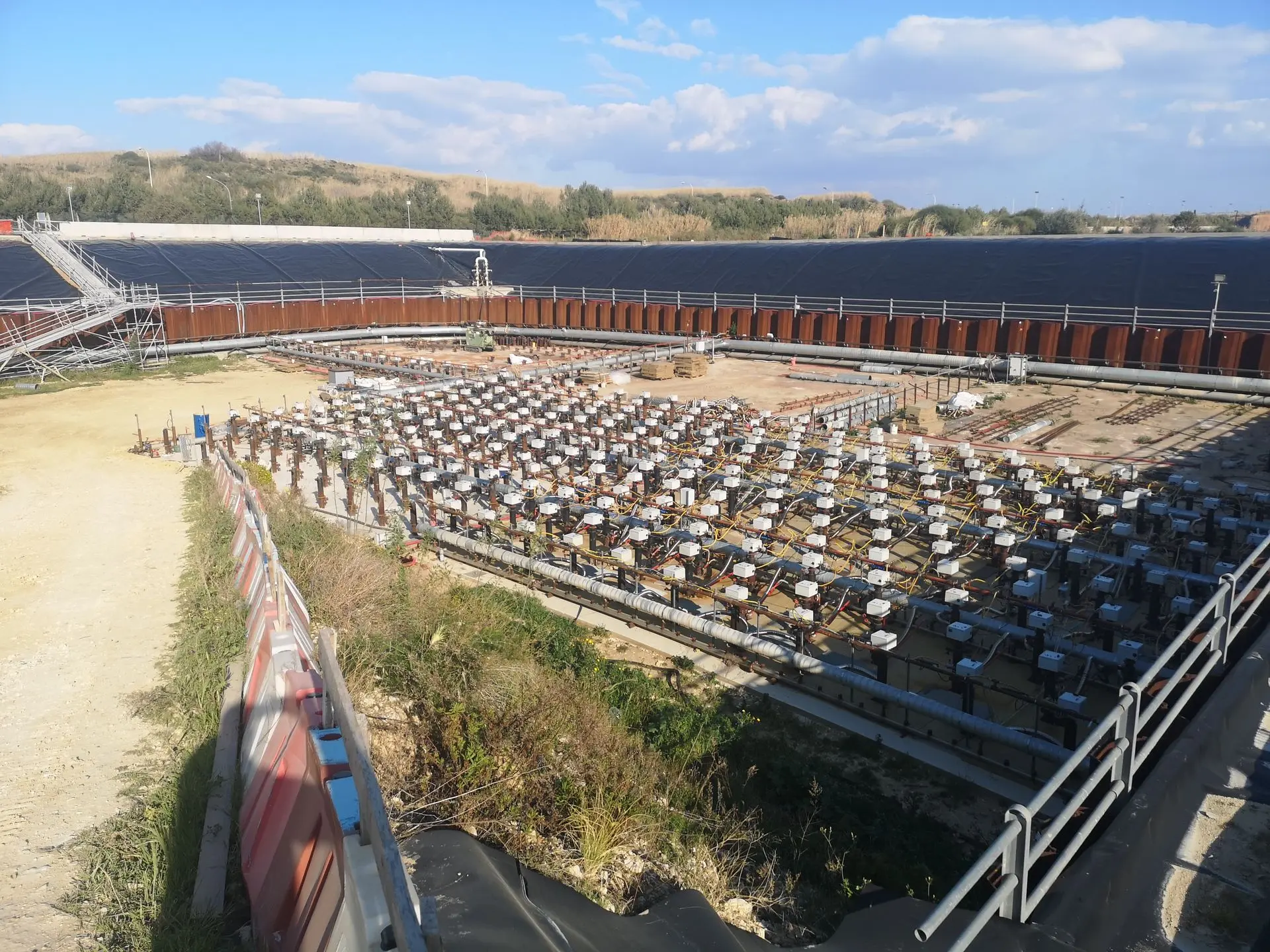

Site during or after treatment

Reference sheet

Technical summary of this project, sent on request.
