Large-Scale Thermal Remediation of Hydrocarbon-Impacted Soils Along an Urban Canal

10,000 m³ (18,720 t) of soils impacted by PAH, hydrocarbons and TCE/PCE were treated on site in seven Ex-Situ Thermal Treatment batches. The project became a reference for heating control and energy consumption.

Site description

Treated volume10,000 m³of contaminated soil
Thermal technologyEx-Situ Treatment (Applied Onsite)
Main contaminantPAH, hydrocarbons (C10–C40), TCE/PCE
Site challengesSoils excavated from several zones along an urban canal
Project timeline2019 – 2021

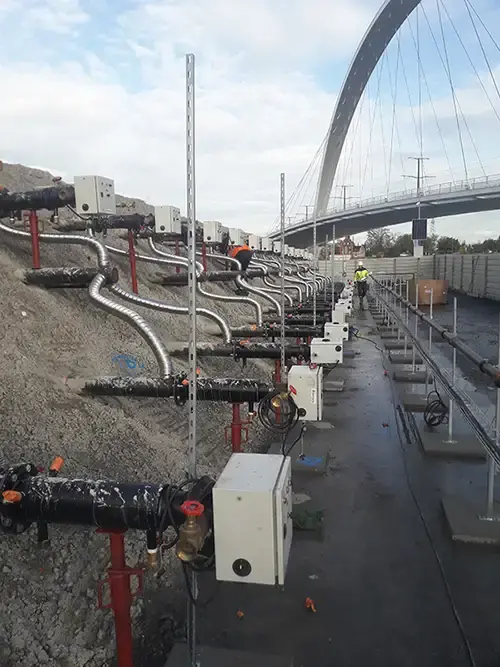

Remediation site along an urban canal in Strasbourg

Solution

  • Treatment methodOn-site thermal remediation using Smart Burners fuelled with natural gas
  • Treatment program7 batches of approximately 2,700 tonnes each
  • Contaminated vapour managementRe-Burn treatment (Vapour Treatment with granulated activated carbon from the seventh batch)
  • Process control15 temperature probe wells, 5 pressure wells and a gas analyser

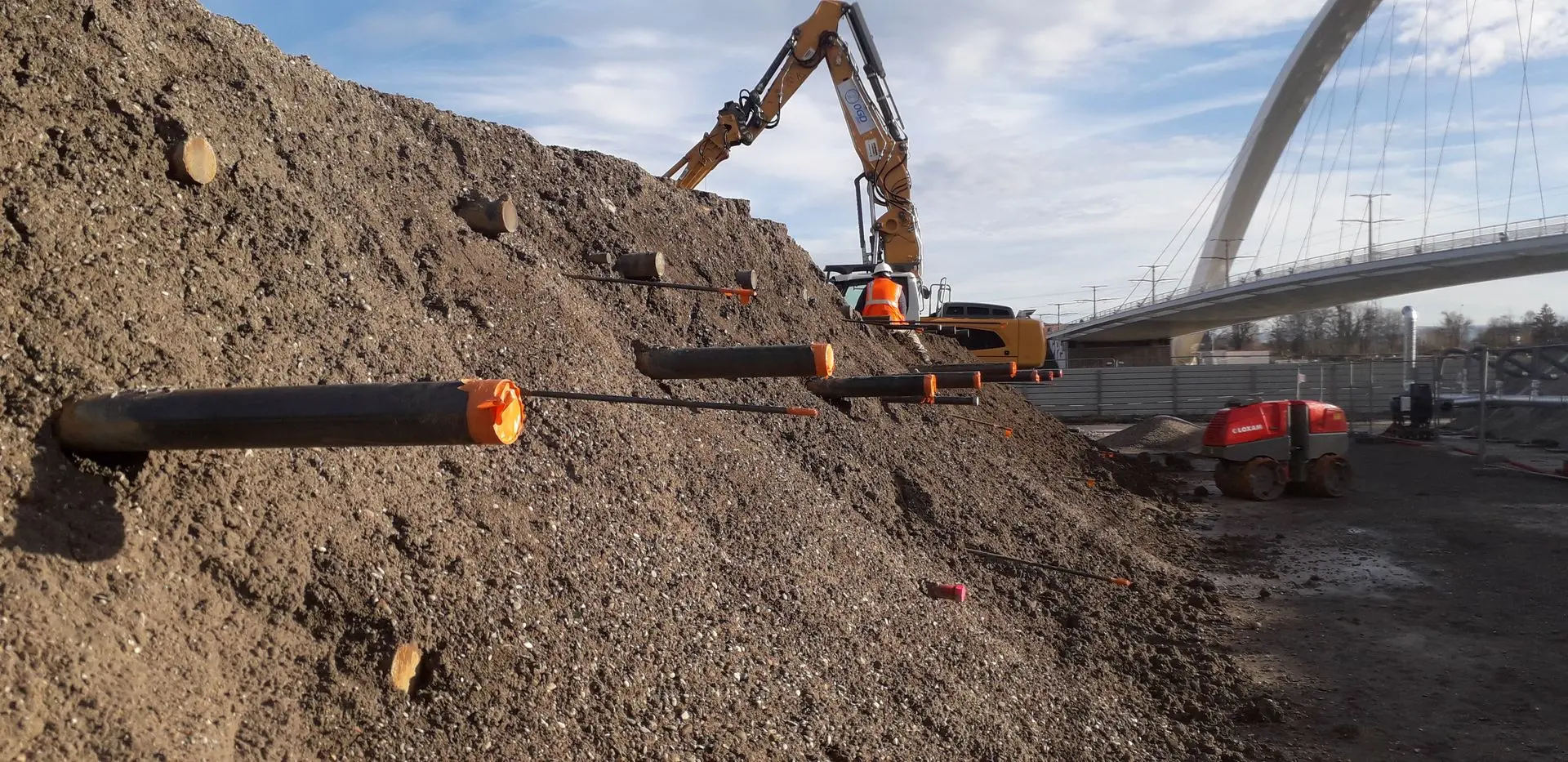

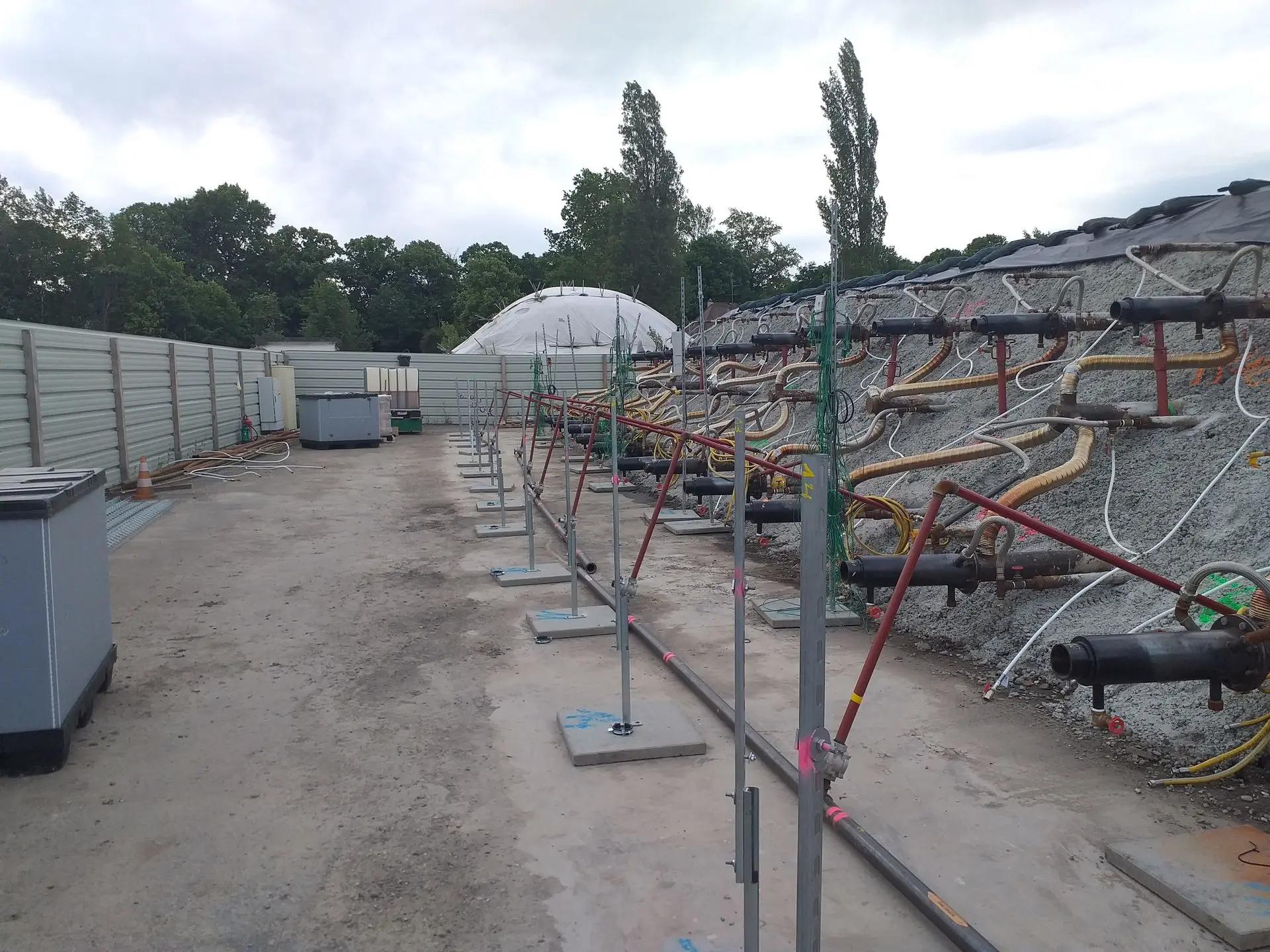

Ex-situ thermal treatment piles on site

Results

97%average burner operating rate
43–56 daysheating time per batch (batches 2 to 7)
Reference project for heating control and energy consumption
Treated soil at the end of the thermal treatment

Reference sheet

Technical summary of this project, sent on request.
