LNAPL Recovery from Deep Groundwater Using Dynamic Vacuum Skimming, Catenoy, France

A dynamic vacuum skimming system was successfully deployed to recover viscous free-phase hydrocarbons from a deep chalk aquifer.

Site description

Recovered product11 m³of pure product
TechnologyLNAPL skimming (dynamic vacuum)
Main contaminantHydrocarbons, BTEX, phenols, chlorobenzenes, VOC
Site challengesViscous free phase up to 7 m thick in a chalk aquifer at 22 m depth
Project timeline2012, about 3 years of operation
Project site

Solution

  • Treatment methodDynamic vacuum skimming
  • Treatment programDS 500-12D pumping unit linked to SKIM 2-25 and SKIM 4-25 skimmers in 8 wells
  • Product managementSettling and storage unit added to reduce handling and treatment costs
  • Process controlOperation adapted to the seasonal aquifer variation of 2.5–3.0 m

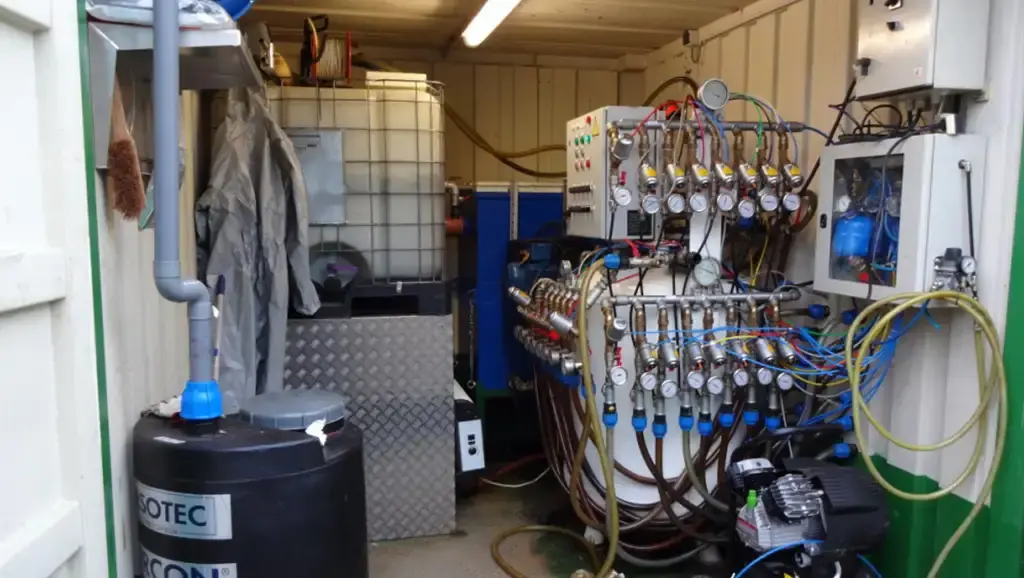

Treatment on site

Results

Free phase reduced from up to 7 m to less than 10 cm in all wells
11 m³pure product recovered over about three years
9.5 L/dayaverage pure product pumping

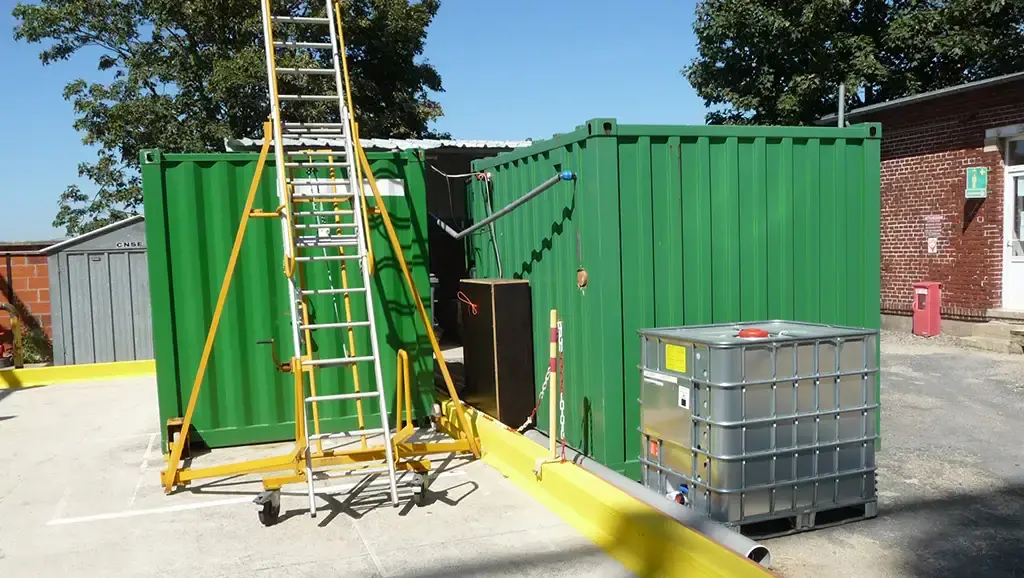

Site during or after treatment

Reference sheet

Technical summary of this project, sent on request.
