Mercury and VOC Soil Remediation by Ex-Situ Thermal Desorption

Pilot-scale demonstration in Akko, Israel, validating Haemers Technologies' Ex-Situ Thermal Desorption (ESTD) for the treatment of mercury- and VOC-contaminated soils. The project confirmed the technology's ability to achieve residential cleanup targets while ensuring full compliance with atmospheric emission standards.

Site description

Treated volume275 m³of contaminated soil (440 t)
Thermal technologyEx-Situ Thermal Treatment (pilot)
Main contaminantMercury (up to 5,206 mg/kg), VOCs, S-VOCs
Site challengesFormer chemical plant with mercury and chlorinated compounds; residential reuse planned
Project timelineJanuary – April 2022

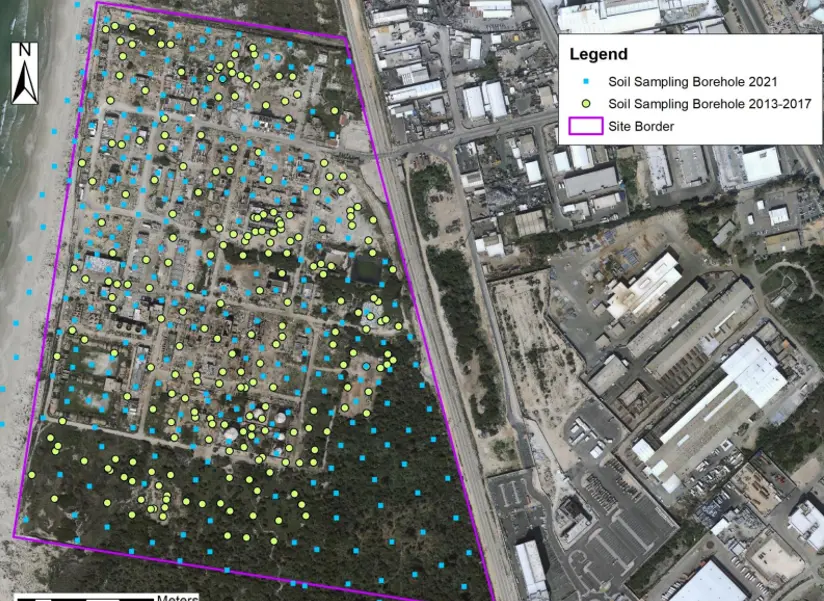

Project site

Solution

  • Treatment methodPilot thermal pile with 15 propane Smart Burners
  • Treatment programTarget temperature 350°C, 30 days of treatment
  • Contaminated vapour managementMercury and VOCs captured on activated carbon or recovered as condensate in the vapour treatment unit
  • Process controlTemperature (10 thermocouple tubes), pile pressure, combustion gases and 9 measuring points in the vapour treatment unit

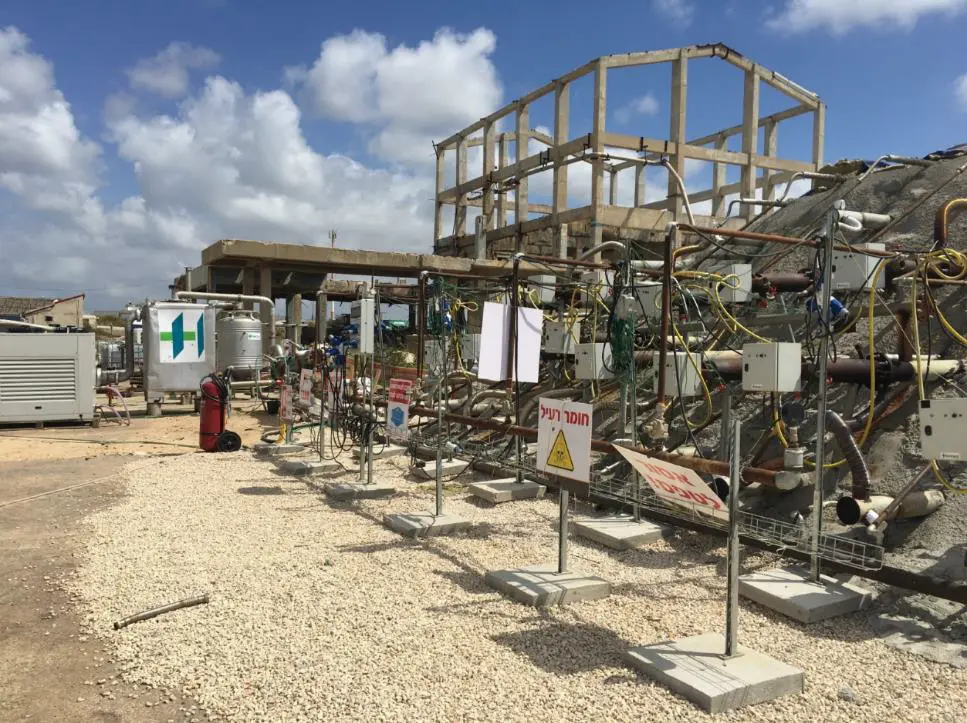

Treatment on site

Results

440 tof soil treated
30 daystreatment time
Mercury and chlorinated vapours recovered; air emissions compliant

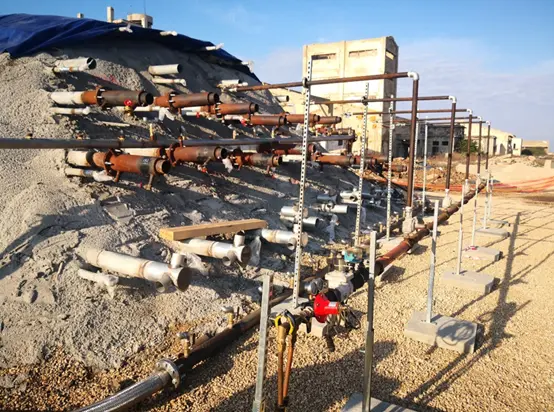

Site during or after treatment

Reference sheet

Technical summary of this project, sent on request.
