Pilot-Scale In-Situ Thermal Desorption of Chlorobenzene-Contaminated Soils in Shanghai

Approximately 340 m³ of soils contaminated with chlorobenzenes, nitrobenzene, and aniline were successfully remediated through a pilot-scale In-Situ Thermal Desorption project, demonstrating effective contaminant removal despite challenging groundwater conditions.

Site description

Treated volume340 m³of contaminated soil (609 t)
Thermal technologyIn-Situ Thermal Treatment (pilot)
Main contaminantChlorobenzene, dichlorobenzenes, nitrobenzene, aniline
Site challengesTreatment zone isolated by a 1 m thick, 14 m deep watertight wall, without groundwater pumping
Project timeline2017
Project site

Solution

  • Treatment methodIn-situ thermal treatment of a 25 m² zone down to 14 m with 11 gas burners
  • Treatment programTarget temperature 150°C, 34 days of heating
  • Contaminated vapour managementVapour treatment unit and liquid treatment unit
  • Process controlSoil temperature monitoring and sampling at 2 to 14 m depth

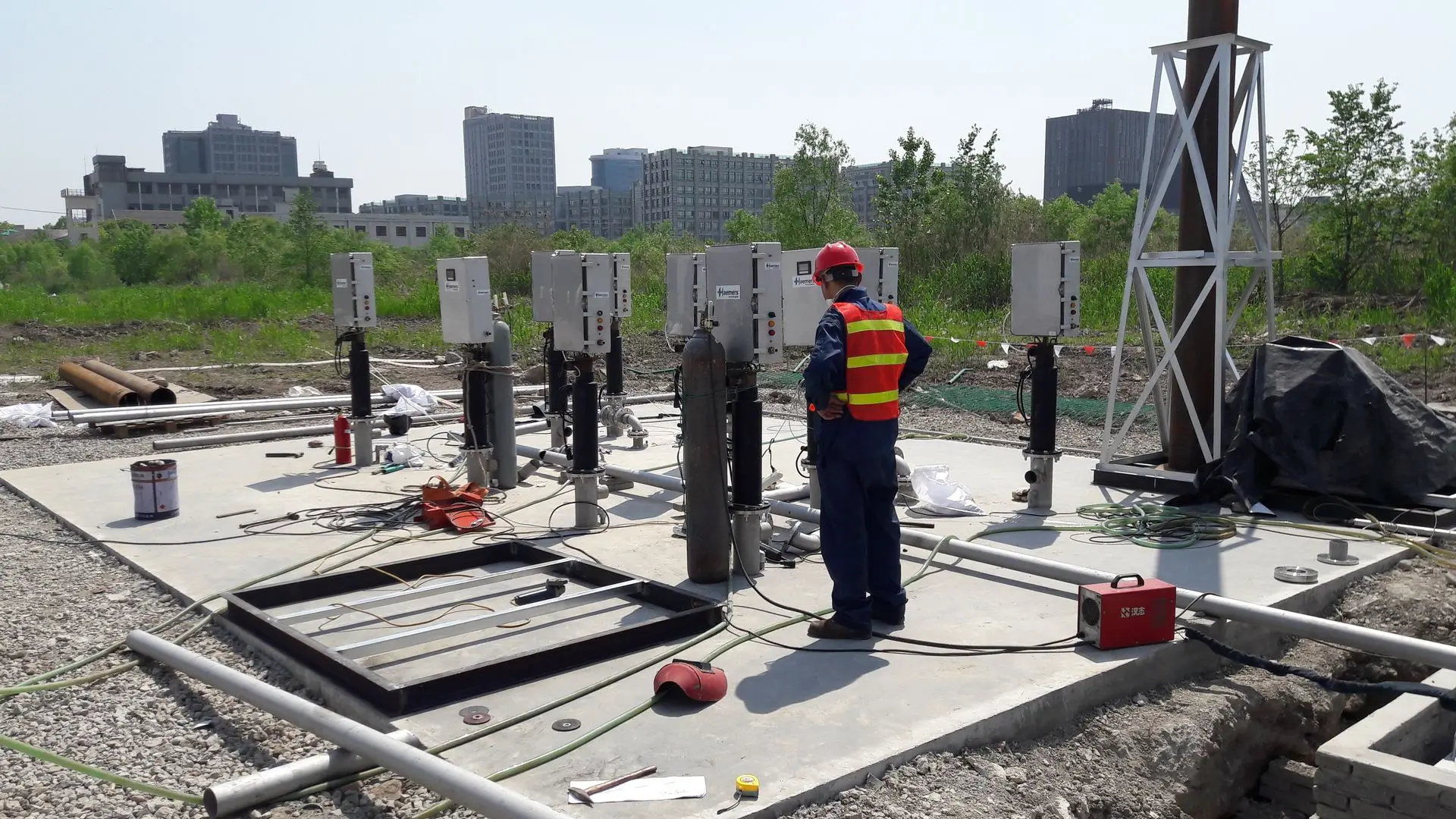

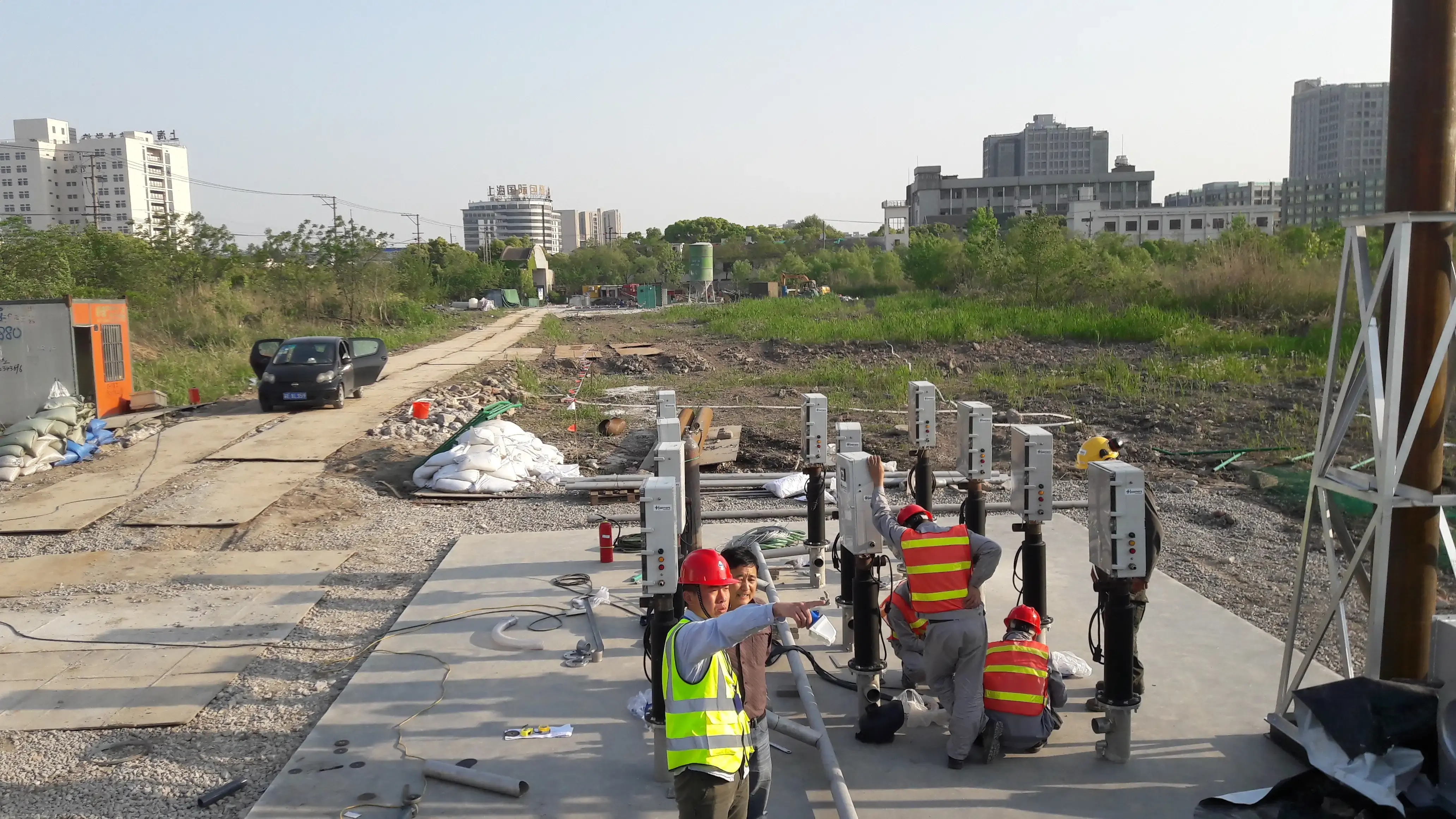

Treatment on site

Results

Concentrations below the target values inside the heating zone
34 daysheating time
Vapours condensed and treated on site

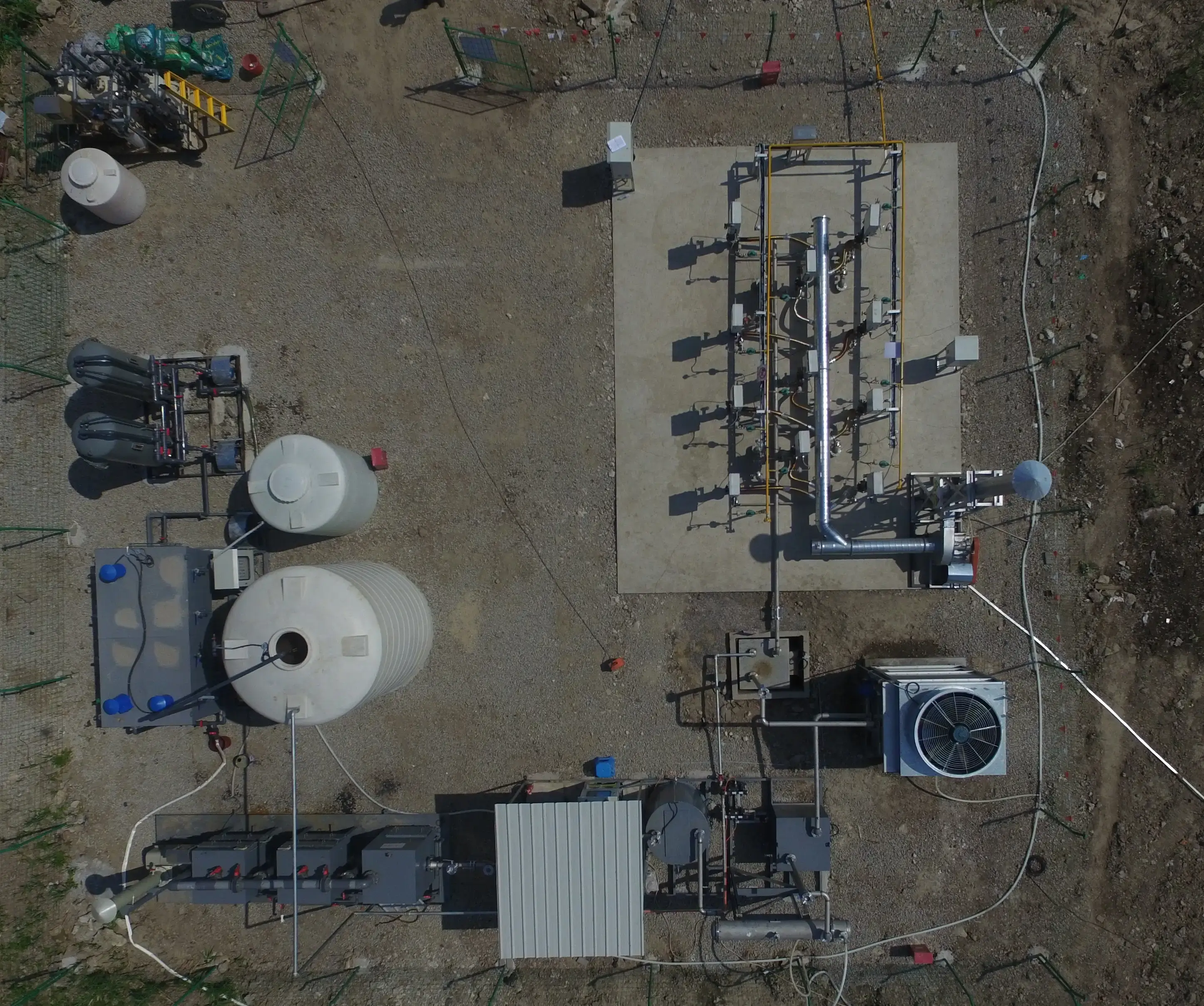

Site during or after treatment

Reference sheet

Technical summary of this project, sent on request.
