Thermal Remediation of Hydrocarbon-Impacted Soils at Ganløseparken, Denmark

Approximately 1,350 m³ of soils contaminated with hydrocarbons from a gasoil tank leak were successfully remediated using In-Situ Thermal Desorption, achieving a 99.2% contaminant removal rate and meeting residential remediation objectives despite challenging groundwater conditions.

Site description

Treated volume1,350 m³of contaminated soil (2,430 t)
Thermal technologyIn-Situ Thermal Treatment
Main contaminantTHC (C10–C40), gasoil
Site challengesGasoil tank leak partly under the house; water layer just below the treatment volume (7.5 m)
Project timeline2017–2018
Project site

Solution

  • Treatment methodIn-situ thermal treatment with Re-Burn
  • Treatment program63 heating tubes, target temperature 220°C, 113 days of heating
  • Contaminated vapour managementRe-Burn; emission standards respected throughout the treatment
  • Process controlSoil temperature monitoring; external soil sampling for COWI

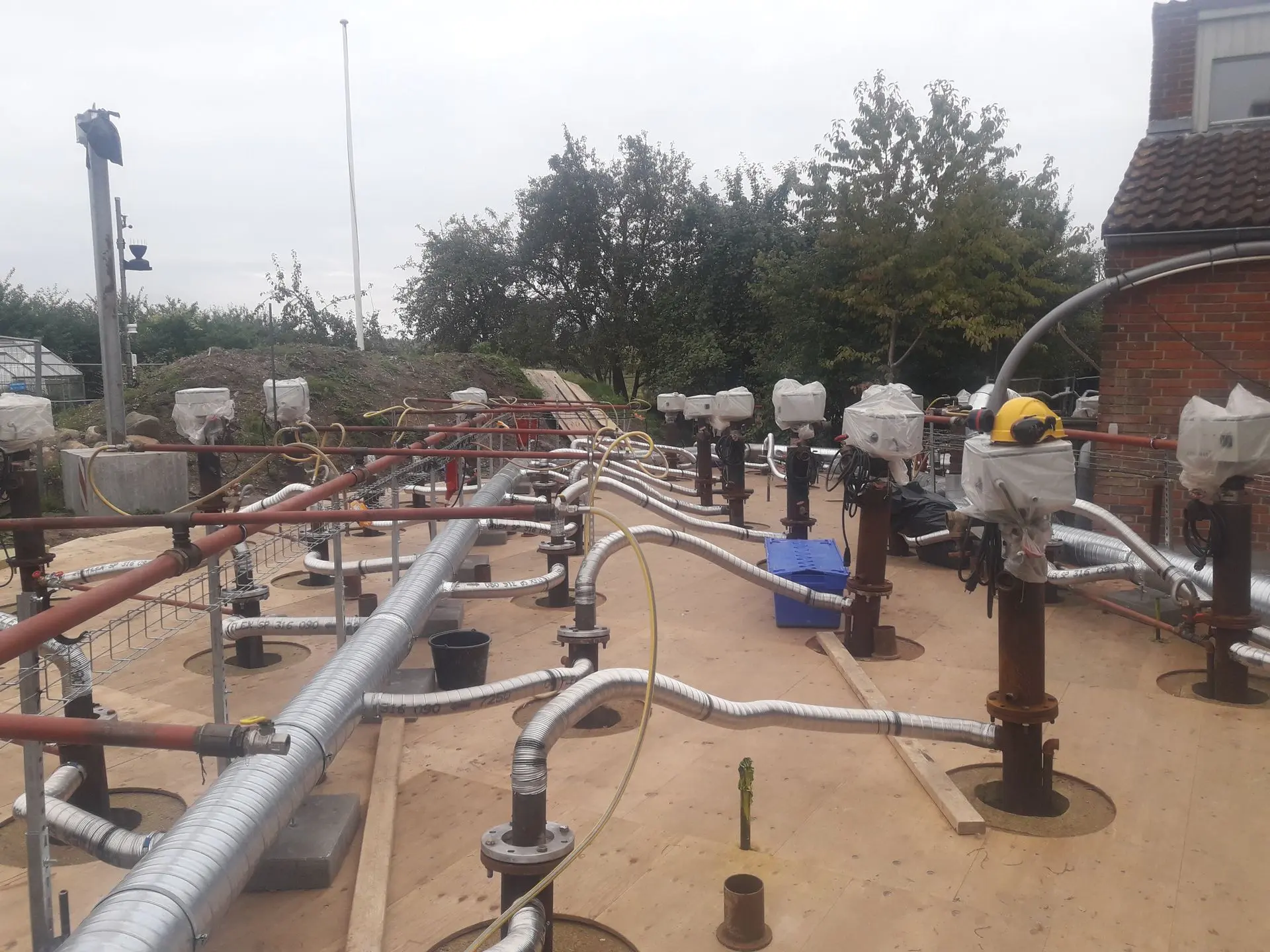

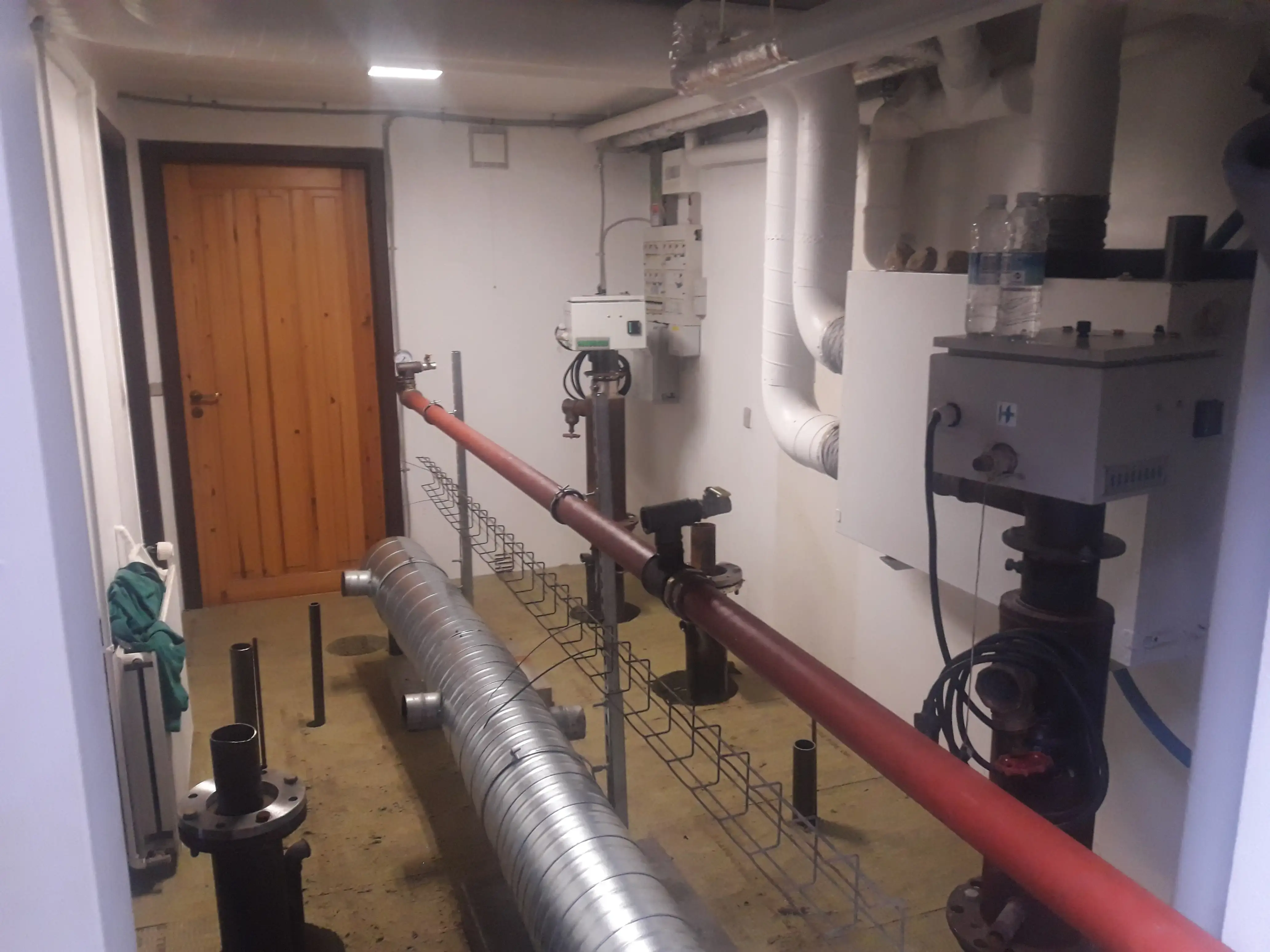

Treatment on site

Results

99.2%contaminant removal rate
113 daysheating time
All control points but one (160 mg/kg) met the target (<100 mg/kg DM)

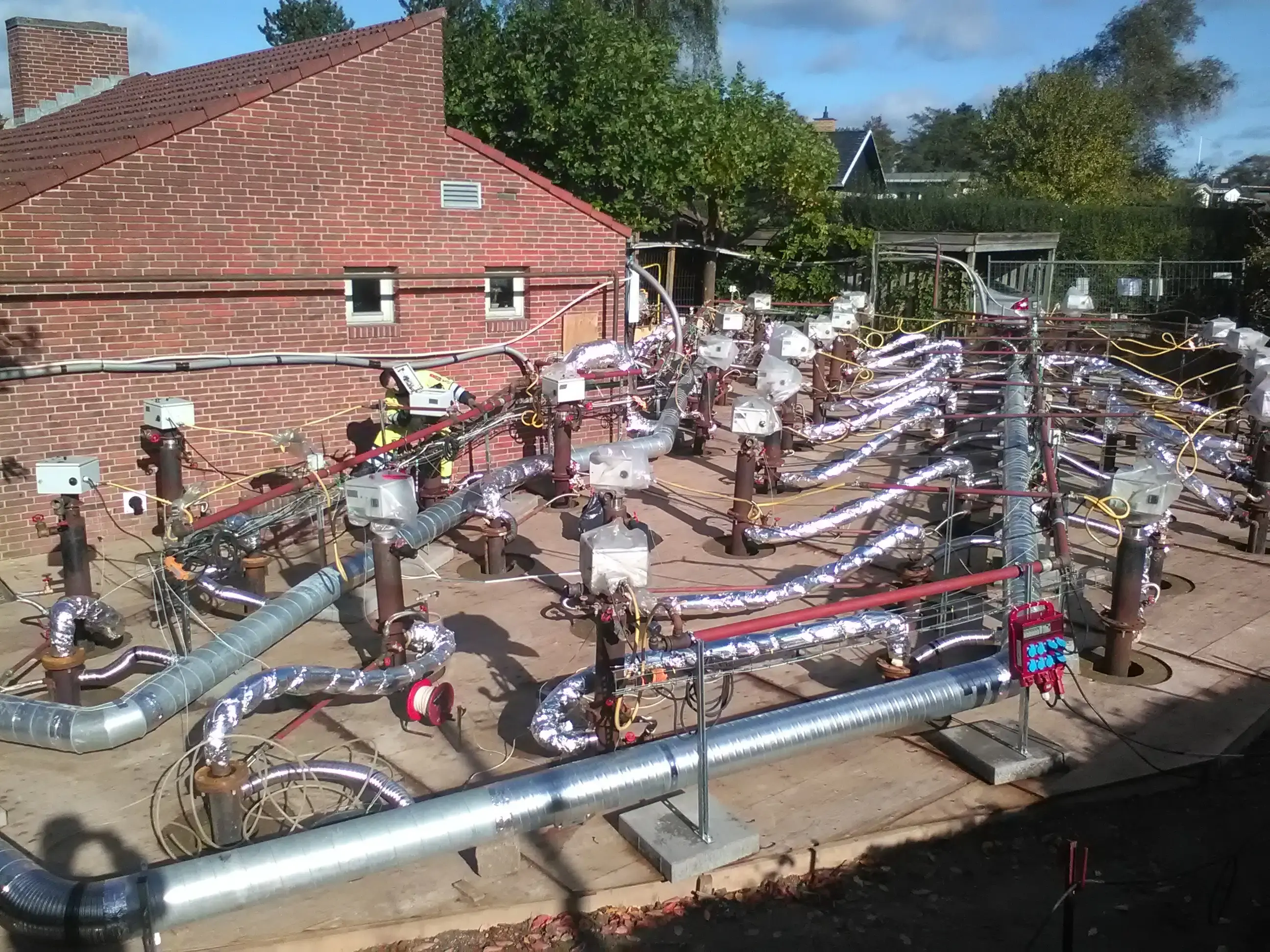

Site during or after treatment

Reference sheet

Technical summary of this project, sent on request.
