Urban Soil Remediation of Former Gas Plant Contamination Using Ex-Situ Thermal Desorption

6,720 tonnes (3,500 m³) of soils contaminated with hydrocarbons, BTEX and PAH from a former gas plant were treated in two Ex-Situ Thermal Treatment piles; all samples met the treatment targets.

Site description

Treated volume3,500 m³of contaminated soil
Thermal technologyEx-Situ Treatment (Applied Onsite)
Main contaminantHydrocarbons, BTEX, PAH
Site challengesFormer gas plant in an urban area; C10–C40 up to 33,000 mg/kg, PAH up to 12,000 mg/kg
Project timeline2019–2021
Project site

Solution

  • Treatment method75 gas-fired burners with Re-Burn technology
  • Treatment program2 piles of 1,500 m³ and 2,000 m³ (6,720 tonnes in total)
  • Contaminated vapour managementRe-Burn; activated carbon filter on the chimney
  • Process controlSoil temperature at cold points, soil pressure, combustion gases and chimney emissions

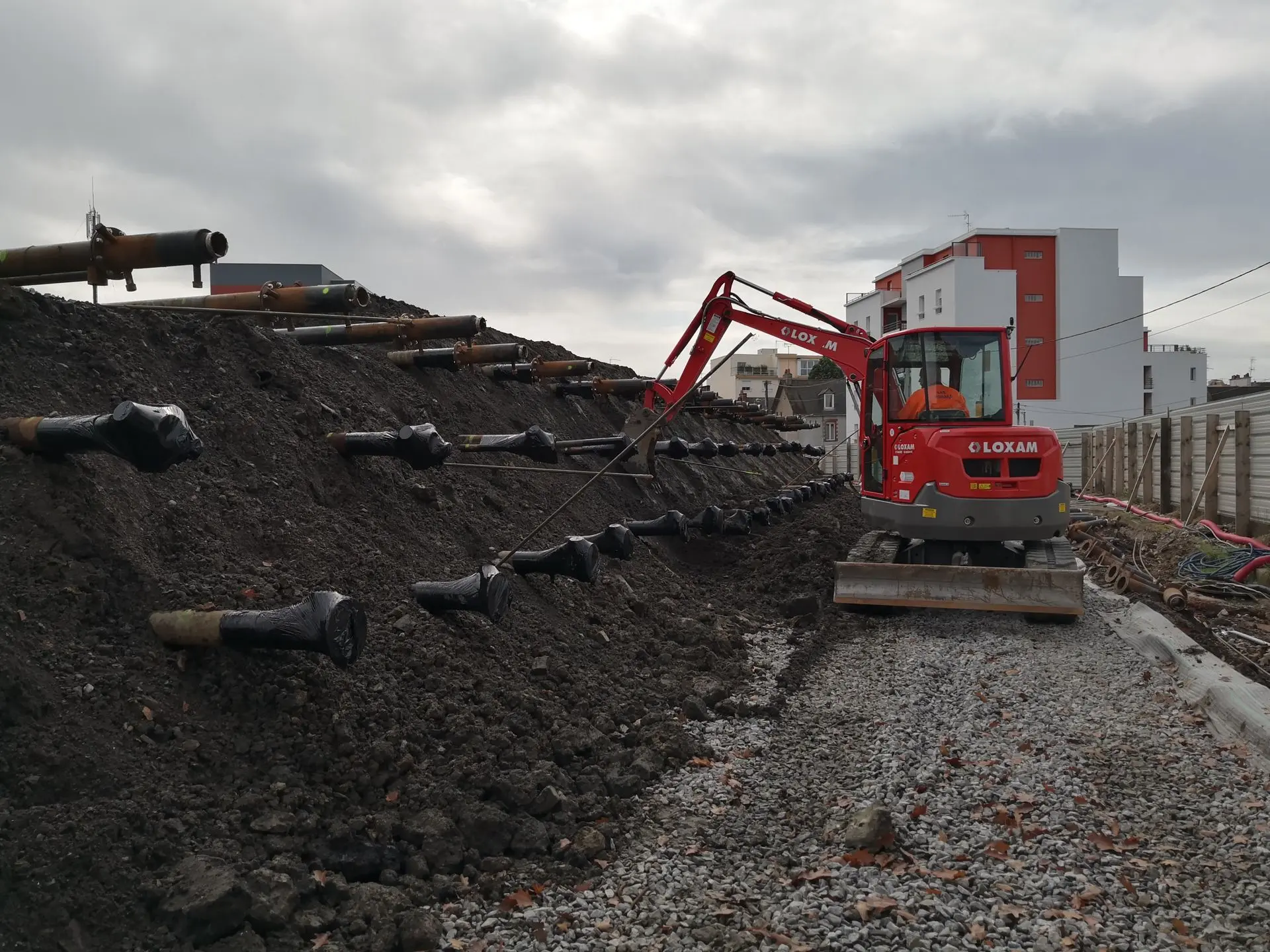

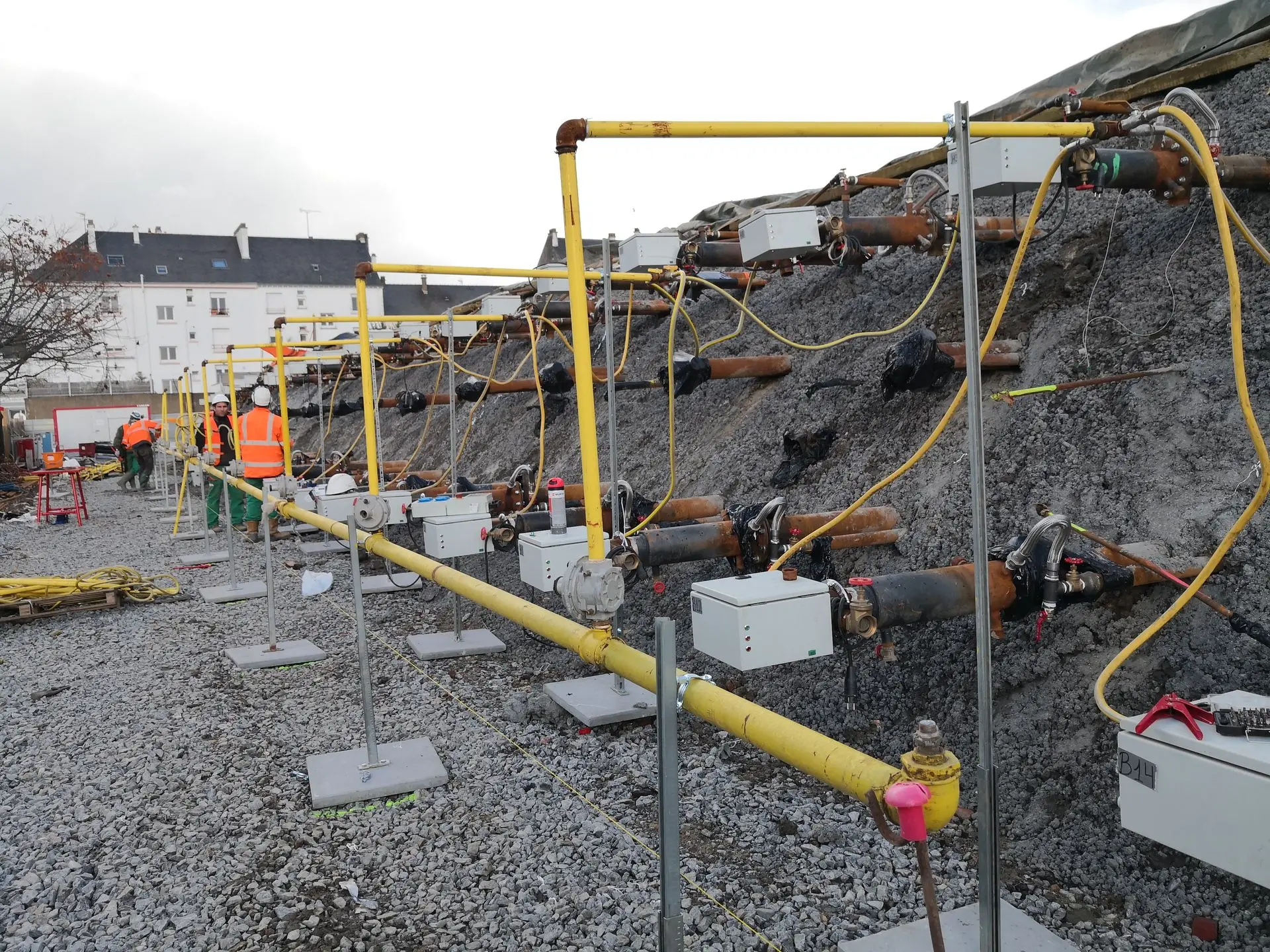

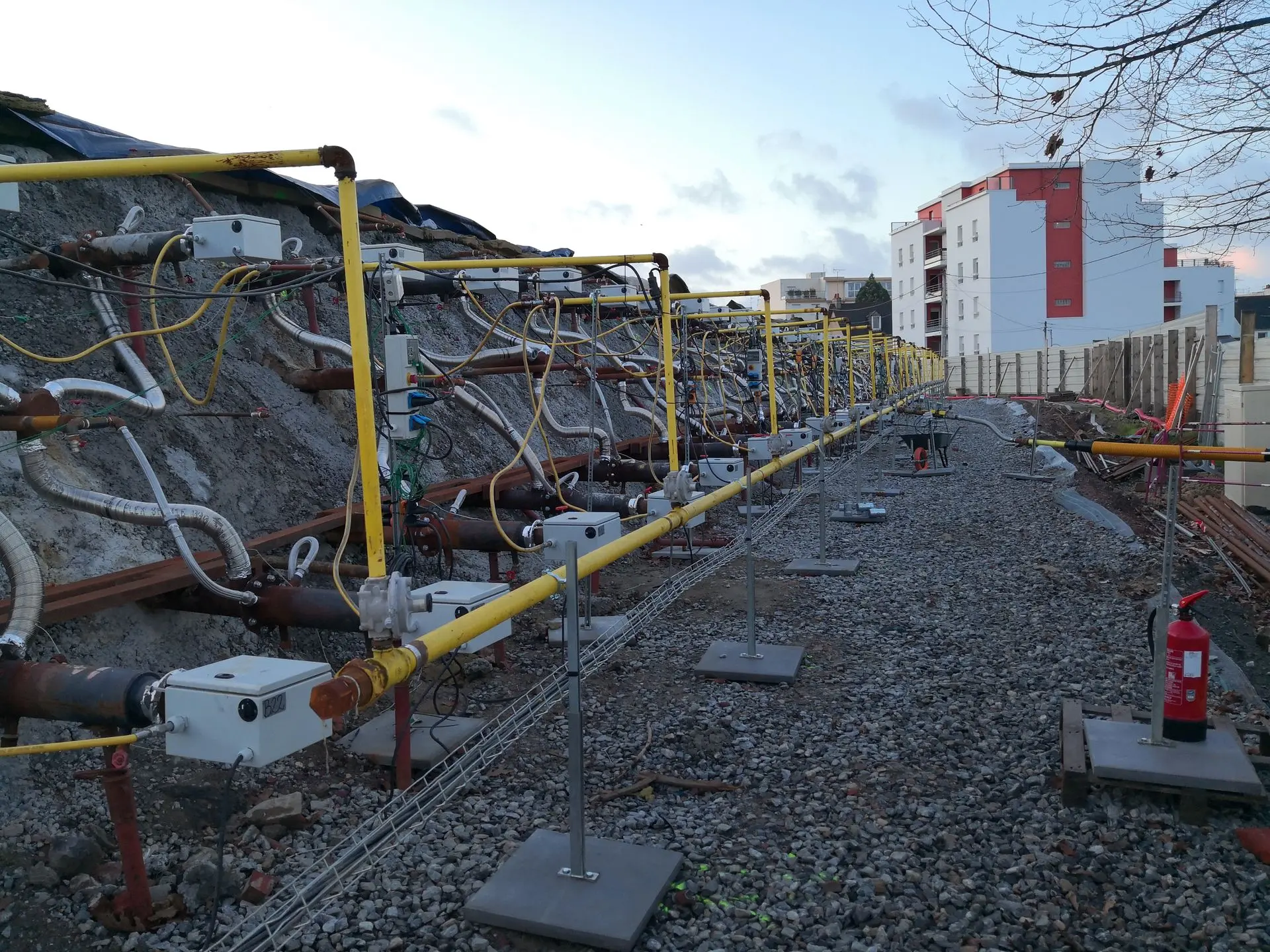

Thermal treatment on site

Results

All samples below targets: C10–C40 <2,250 mg/kg, BTEX <1.6 mg/kg, PAH <500 mg/kg
65 days per piletreatment time
Soil remediated for a future commercial area
Site after treatment

Reference sheet

Technical summary of this project, sent on request.
